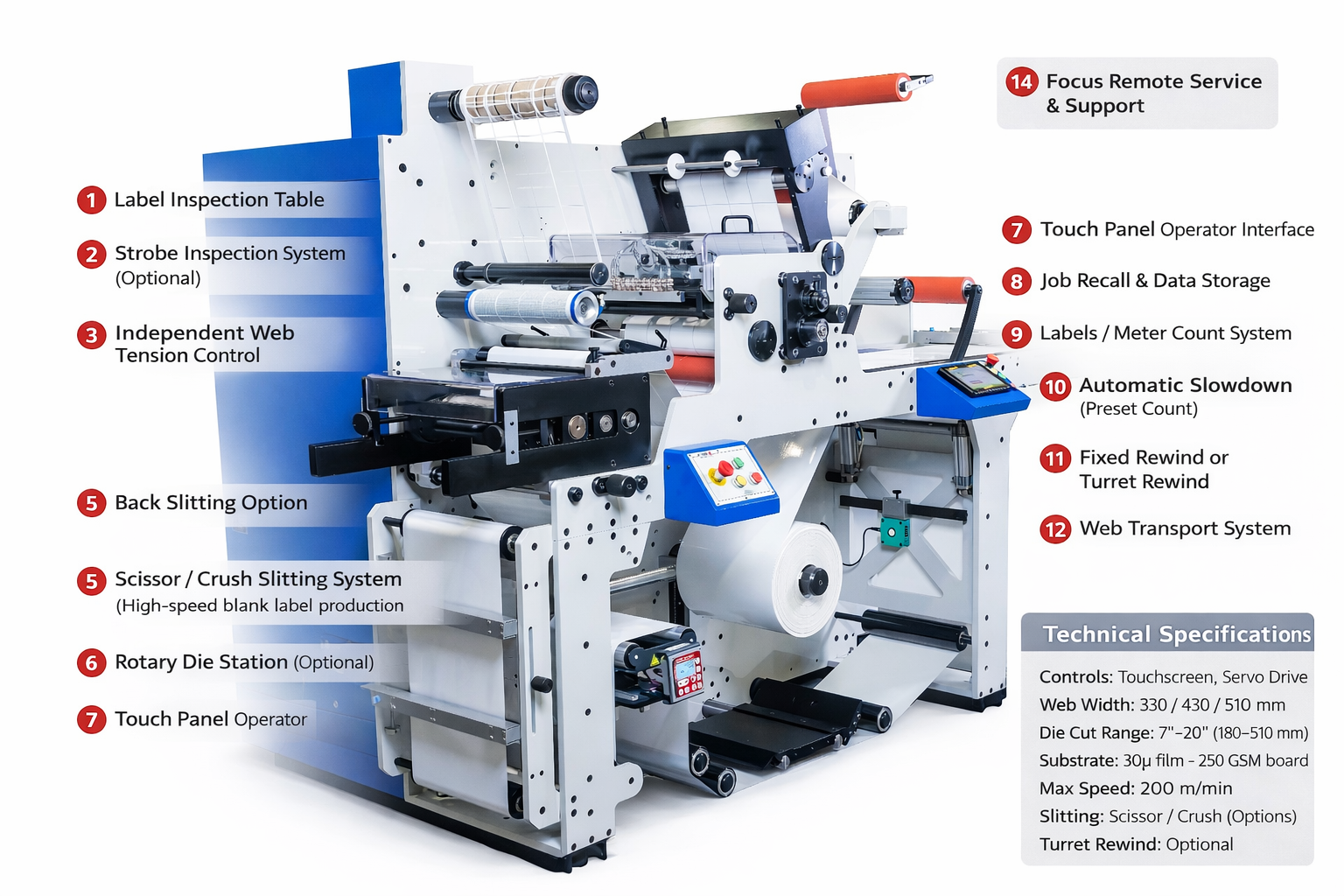

The Reflex 250mm and 330mm servo equipment ensures perfect print-to-cut registration for digital finishing. It offers high-speed, precise re-registration and can operate independently. Features include spot colors, coating, cold foil, laminating, and die cutting.
FOCUS REFLEX SERVO 250/330:
| Feature | Specification |
|---|---|
| Number of Colours | 1 |
| Rotary Slitting | Standard |
| Re-Register System | Optional |
| Max Unwind Diameter | 650mm (Std), 1000mm (Optional) |
| Max Print Width | 10” (254mm) / 13” (330mm) |
| Max Rewind Diameter | 22” (600mm) |
| Print Range | 7-20” (178-510mm) |
| Max Speed | 120m/min (Mechanical) |
| I.R Drying | Standard |
| Other Options | Digital Finishing Systems, U.V or LED Drying (Optional), Turn Bar, Cold Foil, Lamination, Rotary Cutting/Slitting, Sheet Stacker |
| Rotary Die Cutting | 1 std, 2nd Optional |
| Web Cleaner, Corona Treater, Video Inspection, Double Unwind | Available |
| Semi-Rotary Die Cutting | Optional |
| Double Rewind, Digital Ink-jet | Available |
| Rotary Sheeting | Standard |
