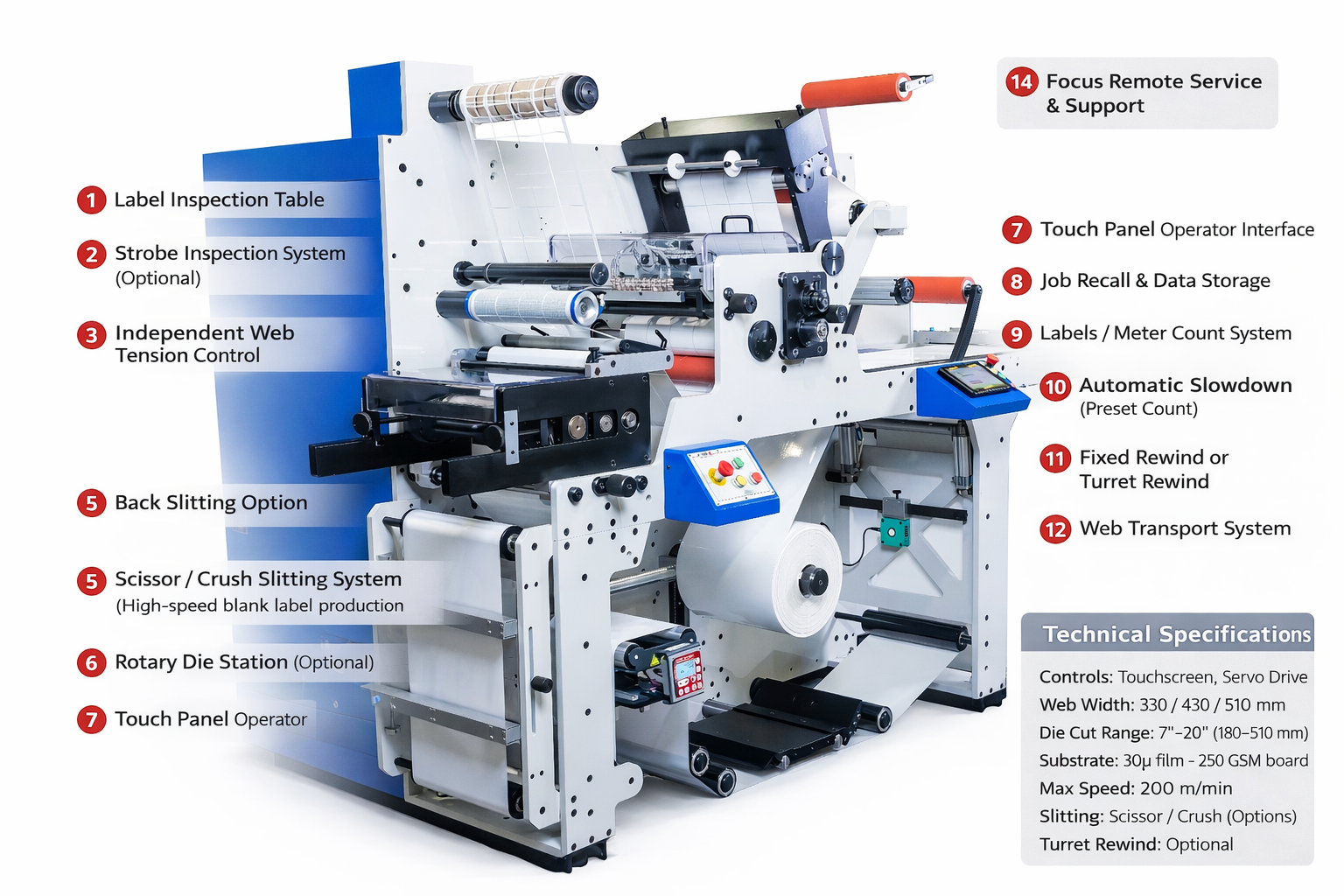

SRC-T 330mm 430mm 510mm Inspection Converting Machine

The SRC-T offers numerous customer benefits for label inspection and finishing. It features a semi-automatic turret for producing small rolls of finished labels and an optional heavy-duty rotary die and waste rewind system with a side-loading feature for converting blank labels. The layout is designed to optimize production output with minimal downtime, ensuring precise repeatability and high-quality product finishing across a wide range of substrates and applications.

Features

  • Label inspection table
  • Strobe or other inspection options
  • Choice of scissors and crush-slitting
  • Back slitting option
  • Optional side-load rotary die station for high-speed production of blank labels
  • Labels/meter count
  • Automatic slowdown for pre-set count
  • Fixed rewinds or semi-automatic rotary rewind turret
  • Independent tension controls for web transport
  • Intuitive touch panel operator interface
  • Full press systems management and data storage for repeat jobs
  • Focus on remote online service and support

Technical Specifications

  • Controls: Touchscreen, Servo drive
  • Web Width: 330mm, 430mm, 510mm
  • Slitting: Yes (options available)
  • Die Cut Range: 7”-20” (180mm – 510mm)
  • Substrate: 30 Micron film to 250 GSM board
  • Maximum Speed: 200 meters per minute
  • Semi-Automatic Turret: Yes (optional)

Unwind

  • 75mm Air Core
  • 800mm Capacity
  • Ultrasonic Sensor for Tension and Diameter tracking
  • Roll Lift (optional)

Inspection Table

  • Dual Air Operated Splice Table
  • Adjustable position

Web Guide

  • Auto Web Guide

Rotary Die Station (Optional)

  • Side Load Operation
  • Removable hardened Anvil Roll
  • Waste Capstan Roll with Adjustable Tension Control
  • Waste Rewind with 76mm Air Core

Slitting

  • Options for Crush/Scissor slitters or both
  • Quick release Scissor cartridge
  • Easy Set Crush Slitters
  • Lateral position adjustment
  • Interlock guards

2 Spindle Rewind

  • 250mm Capacity
  • 2 x 75mm Air Cores (fully interchangeable 19mm to 75mm)
  • Semi-Auto Turret Operation (optional)
  • Labels In-Labels Out for finished roll
  • Foot Core deflation pedal

HMI – Touchscreen

  • Tension settings
  • Label counter
  • Linear meter counter
  • Programmable slow down and stop
  • Online service and upgrades

Contact For Pricing
