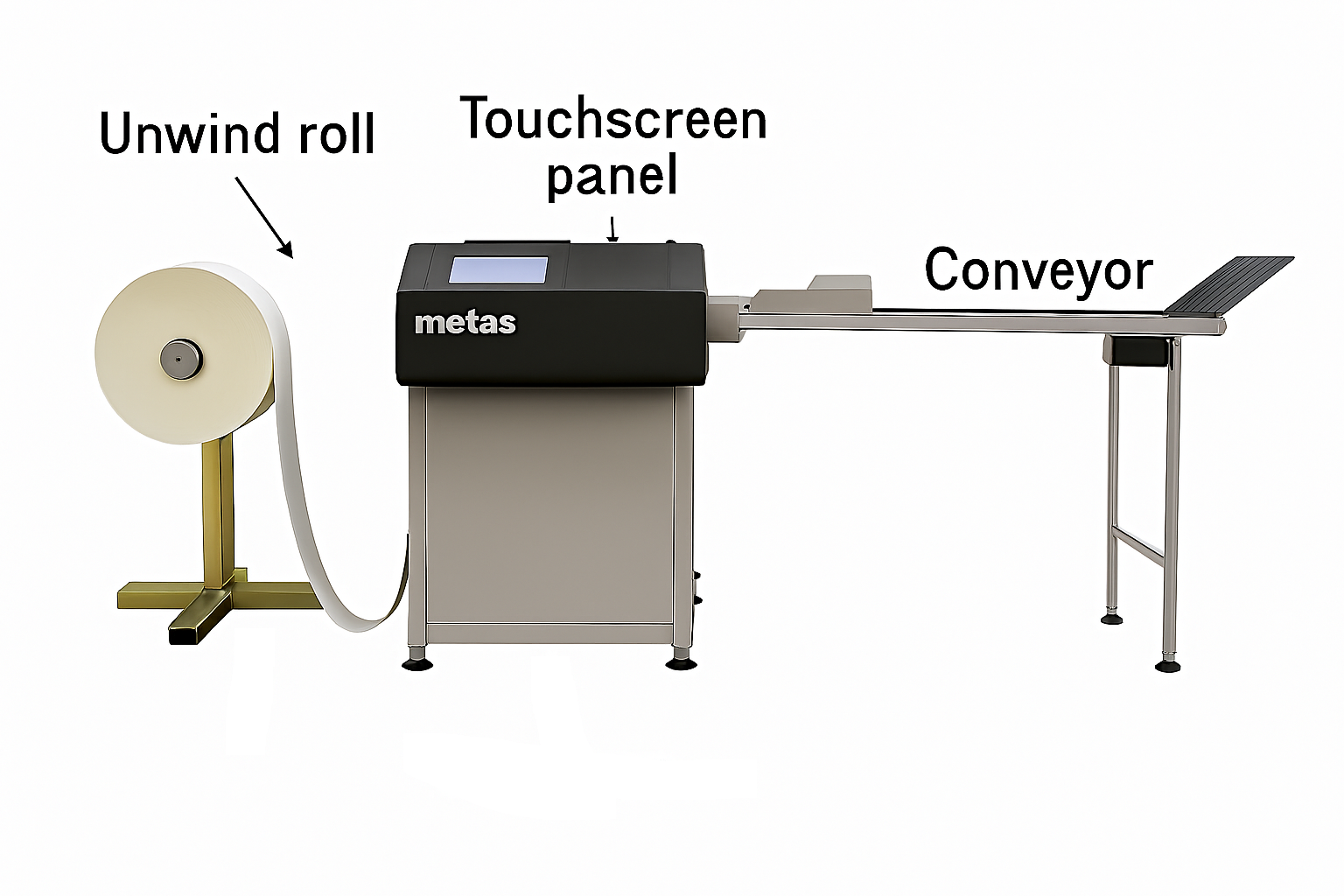

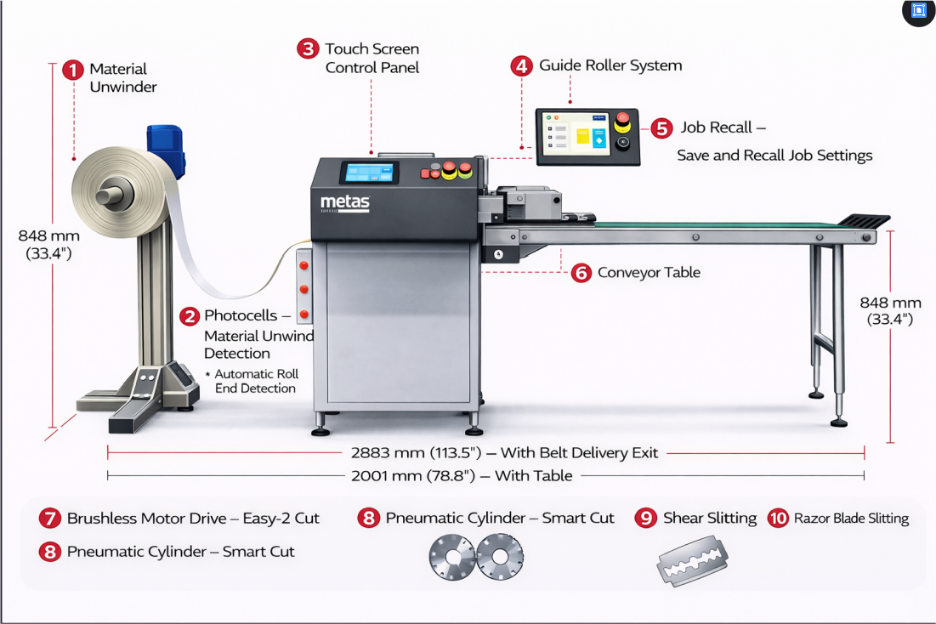

EASY 2 CUT 330MM 13"

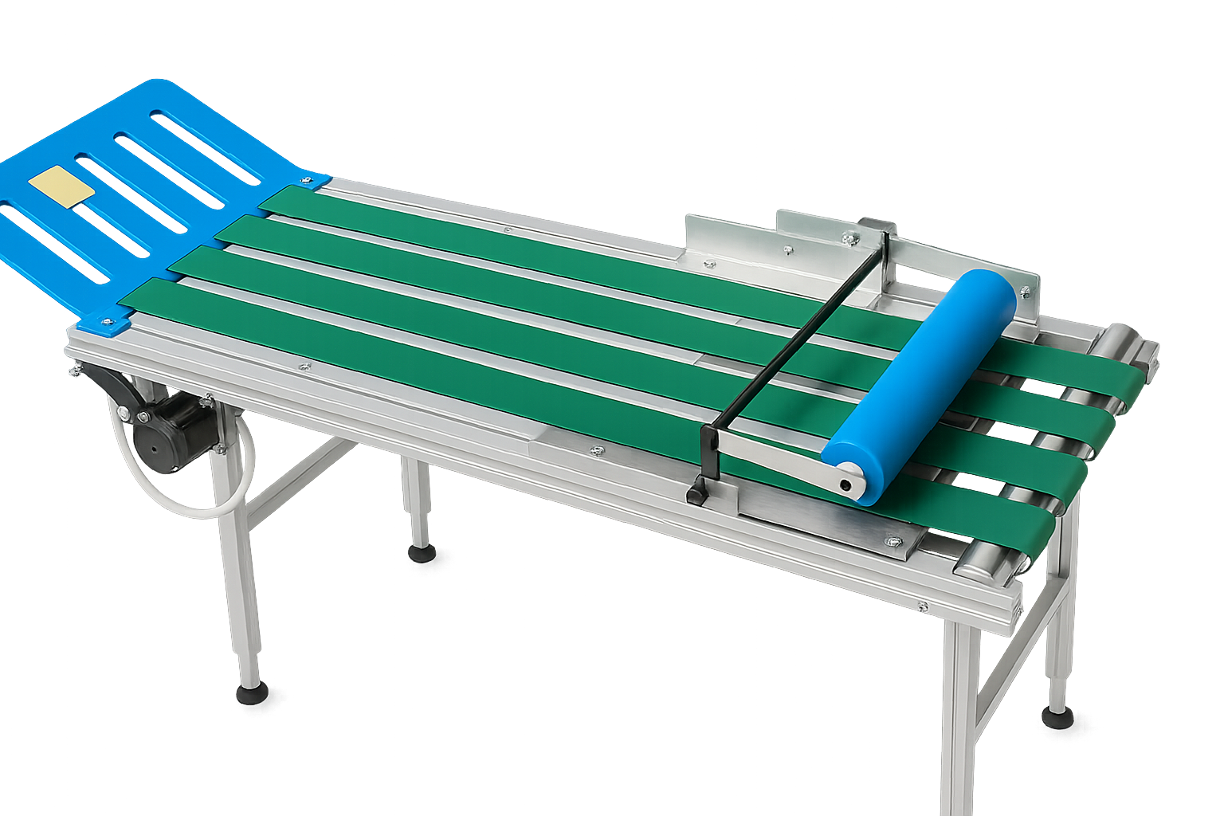

New sheeter with electronic change size system. Versatile, equipped with long-life blades that permit a high cut accuracy through a pneumatic cylinder. It is possible to work with a single cut or double cut. It is also available a vertical slitting unit able to produce 2-up jobs. The cut register, according to sheet size, is always electronically controlled through a label gap sensor reader or print mark sensor. Eliminates gears from size changes. The dynamic offset of the cutting point. The sheeter can also work online through a sensor (optional). The exit type can be with a fixed table or a belt delivery length cm 120 with a job separator.

web width rangemm 65/330 ( 2.5” / 13”)
Cut selectionsingle cut / double cut
Electronic change size systemlength in 0,01 mm
double cut range mm 0,1/50 (0.004 / 2”)
Label gap readersensor suitable for die-cut labels
Print markslot sensor for printed materials
sheet length range mm 50/1524 ( 2” / 60”)
double cut speed16.700 / 6.200 fogli/h sheets/h
speed 50 m/min 164 fpm
cutting accuracy approx. +/- mm 0,15 (0.006”)
Core Size mm 76 ( 3”) option mm 150 ( 6”)
max roll weightKg 60 132 lbs
Web Widths13" 300mm
Min.Web Width60mm 2.50 "
Unwind Roll Diameter609mm 24"
Unwind Core76mm 3"
Processed Materialsilicon paper + paper thickness 50 g/m2 – 250 g/m2
Slitting methodRazor Shear
Tension control New control with LCD touch screen 7”
Type of unwinderAir Shaft
CE certifiedCE certified
Easy 2 Cut
