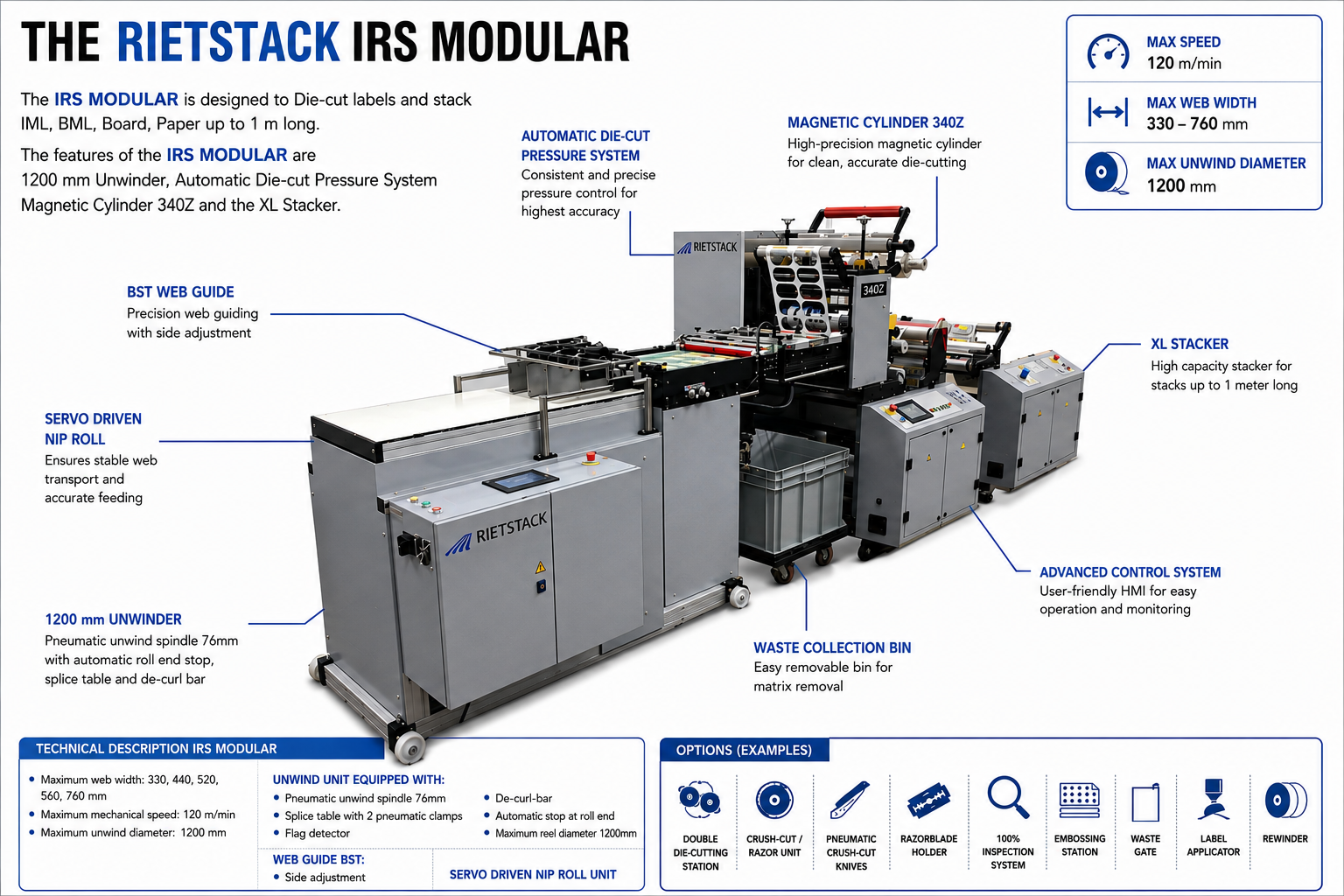

Rietstack IRS Modular Automatic Rotary Cutting Machine with High Pile Stacker We serve customers all over the world's continents and produce for world's largest manufacturers.
The IRS MODULAR is designed for die-cutting labels and stacking IML, BML, board, and paper up to 1 meter long. Key features include a 1200 mm unwinder and an automatic die-cut pressure system.
Widths available 330mm,440mm,520mm, 560mm,760mm
Features:
- Magnetic Cylinder 340Z
- XL Stacker
Technical Specifications:
- Maximum Web Width: 330, 440, 520, 560, 760 mm
- Maximum Mechanical Speed: 120 m/min
- Maximum Unwind Diameter: 1200 mm
Unwind Unit:
- Pneumatic unwind spindle (76 mm)
- Splice table with 2 pneumatic clamps
- Flag detector
- De-curl bar
- Automatic stop at roll end
- Maximum reel diameter: 1200 mm
Web Guide BST:
- Side adjustment
Die-Cutting Station:
- Standard max. magnetic cylinder 220T
- Die-cutting cylinder driven by servo drive
- Automatic die-cut pressure system
- Hydraulic pressure readout (optional)
- Control system for off-line in-register die-cutting
- Semi-rotary die-cutting process (optional)
Additional Units:
- Servo-driven nip roller unit (optional embossing unit)
- Buffer unit
- XL die-cut unit with magnetic cylinder max. 340T
- Matrix servo-driven pneumatic nip roller unit
- Matrix rewinder with pneumatic rewind spindle (76 mm)
- Maximum rewind diameter: 500 mm
- Pneumatic matrix nip roller

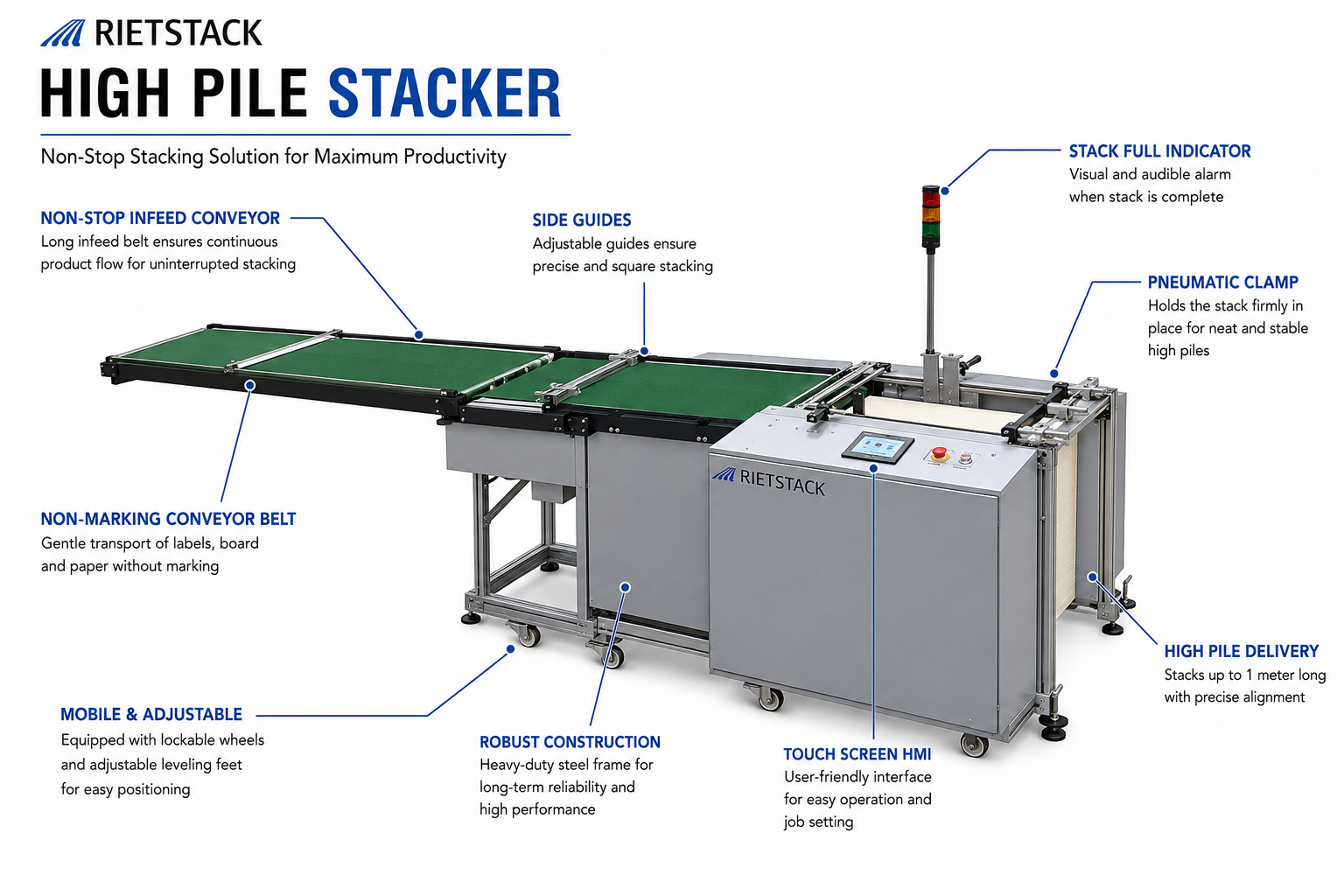

Stacker XL:
- Servo-driven vacuum infeed table
- 3 antistatic bars
- Maximum stack height: 100 mm
- Maximum length: 1050 mm
- Minimum length: 50 mm
- Maximum 4 streams across
- Hydraulic stacking table
- Pneumatic outfeed
