The Proflex range, available in 250mm and 330mm widths, offers Servo (Se) and line shaft (e) options. It features quick setup with drop-in cylinders and supports various applications, from films to cartons. The combination drying systems include IR, UV, LED UV, and chill rolls, making it ideal for narrow web printing.

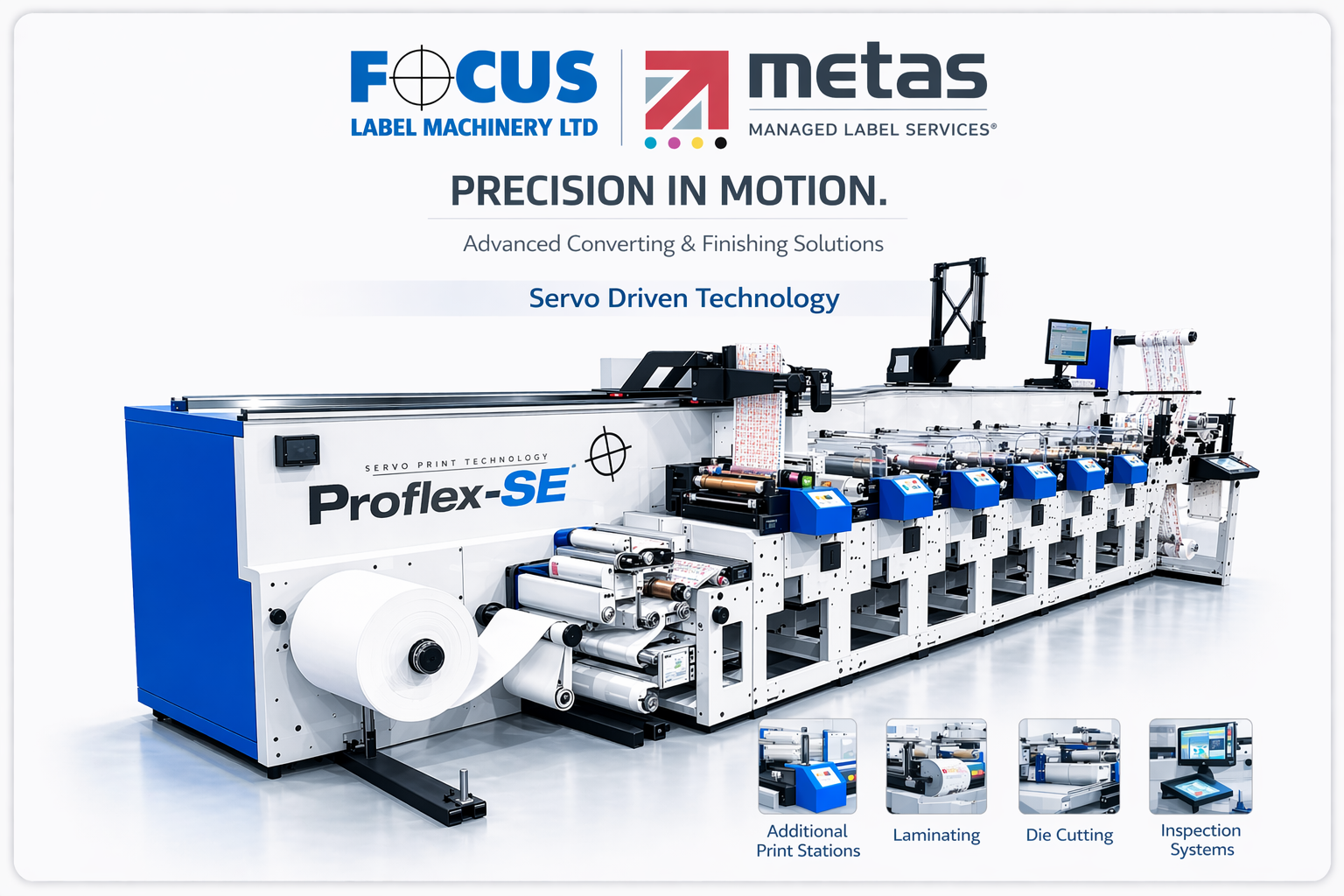

The Focus Proflex ‘Se’ Series represents the pinnacle of advanced servo technology, designed to deliver exceptional productivity, cost-efficiency, versatility, and print quality. This series is engineered to meet the diverse needs of modern printing operations, offering a range of features that enhance performance and streamline workflows.
It looks like you’re comparing two printing machines or systems. Here’s a summary of the key specifications:
| Feature | Option 1 | Option 2 |
|---|---|---|
| Number of Colours | 10 Max | 10 Max |
| Digital Ink Jet Integration | Requires UV drier | Requires UV drier |
| Mono & Colour Option | Yes | Yes |
| Max Web Width | 260mm (12.25”) | 336mm (13.25”) |
| Max Print Width | 254mm (10”) | 330mm (13”) |
| Max/Min Print Length | 188-510mm (7-20”) | 188-510mm (7-20”) |
| Gearing (Spur or Helical) | 3.175 (1/8 C.P) | 3.175 (1/8 C.P) |
| Infra Red Drying | Std (2 Kw/Col) | Std (2 Kw/Col) |
| LED UV | Optional | Optional |
| U.V Drying | Optional | Optional |
| Chill Rolls | Optional | Optional |
| Slitting | Yes | Yes |
| Rotary Die Cutting | Yes | Yes |
| Rotary Sheeting | Yes | Yes |
| Max Unwind Reel Diameter | 1000mm (40”) | 1000mm (40”) |
| Max Rewind Reel Diameter | 850mm (22”) | 850mm (22”) |
