Offline Sheeting 510mm Film and Paper Cutter 13", 20 inch,

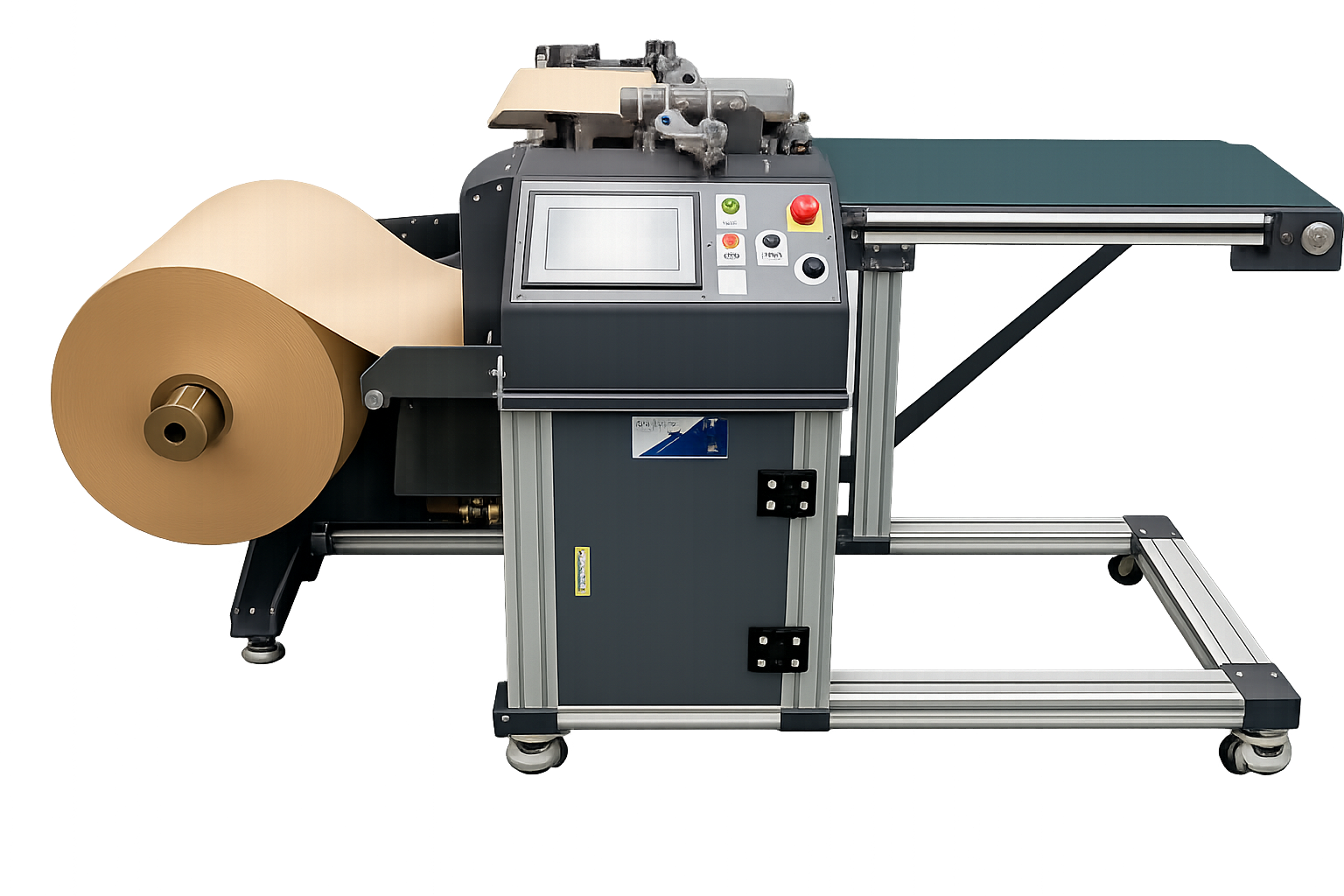

The **Film and Paper Cutter AR-550** (21.65”) appears to be a versatile and high-precision sheeter designed for cutting various materials like film and paper with accuracy and efficiency. Here’s a breakdown of its key features and technical specifications:

**Key Features:**
**Electronic Size Change System**: Allows for quick and precise size adjustments, with an accuracy of 0.01 mm for the fold length.
**Cutting Technology**: Equipped with long-life blades and a new generation of brushless motors for high cutting accuracy.
**Rotary Slitting Knife**: Provides an alternative cutting method, adding versatility.
**Cut Register Control**: Electronically controlled cut register for precise sheet sizing, using a label gap/print mark sensor.
**Dynamic Offset**: The cutting point can be dynamically adjusted.
**Online Operation**: Can work online via an optional sensor for additional automation and accuracy.
**Programmable Features**: Includes sheet and lot counters, and the number of labels per sheet can be preset.

**Control Features:**
**LCD Touch Screen**: A 7-inch LCD screen for user-friendly operation and control.**Sensors**:

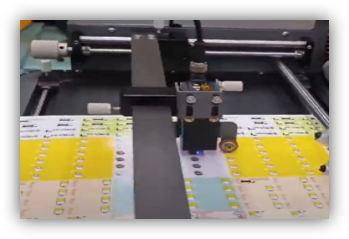

Label gap reader sensor for die-cut labels.
Print mark/slot sensor for printed materials, ensuring high accuracy in cutting and alignment.

**Performance:**
**Cutting Speed**: Capable of 80 cuts per minute (at a 610 mm cutting length), which makes it suitable for medium-to-high-volume operations.

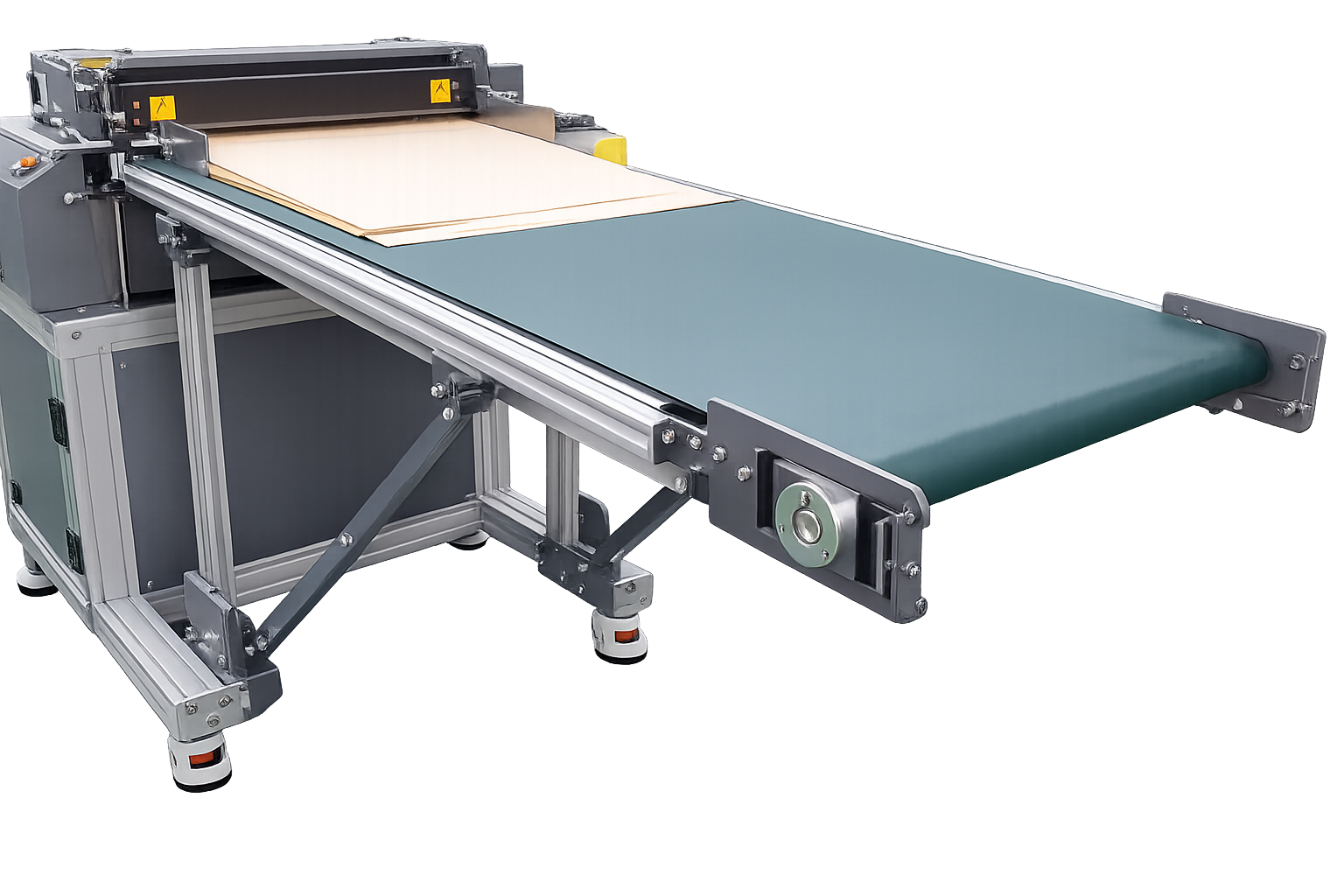

**Conveyor Length**: The conveyor is 1.5 meters long, allowing for efficient handling of materials.

### **Technical Specifications (Offline Version)**:
**Web Width Range**: Can handle materials from 65 mm to 508 mm (2.5” to 22”).
**Sheet Length**: Can cut sheet lengths up to 9999.999 mm, providing great flexibility.
**Cutting Accuracy**: The system offers high precision, with an accuracy of approximately ±0.15 mm (0.006”).
**Weight**: The machine weighs approximately 300 kg.
**Power**: It operates on AC 220V, 50/60Hz with a power consumption of 2 kW.

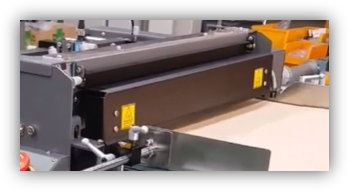

**Ionizer**: Included to eliminate static buildup during operation.

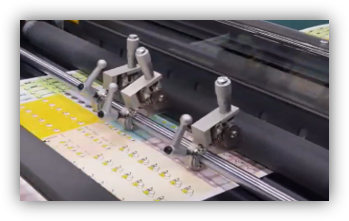

**Razor Knife Unit**: Includes a slitter unit with 3 razor knives for cutting.

**Dimensions**:
**Length**: 2580 mm
**Width**: 1200 mm
**Height**: 1250 mm

This machine is a reliable, efficient, and highly customizable tool for precision cutting, suitable for various industries needing high throughput with minimal downtime due to its quick size adjustment and automated controls.

Contact For Pricing

Here’s a clean and professional version of the information you’ve provided, which you can use in a brochure, quotation, or technical specification sheet:

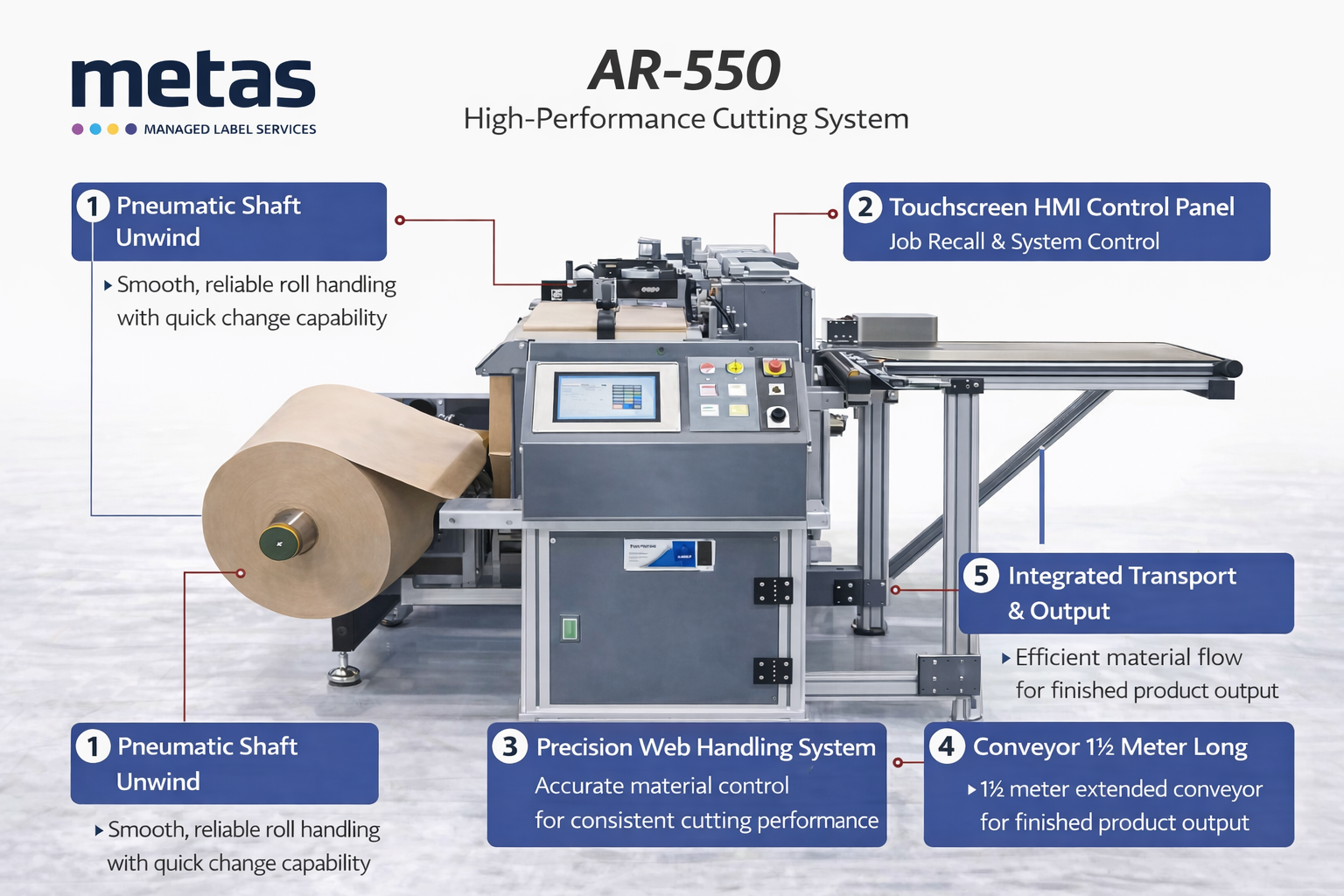

Film and Paper Cutter – Model AR-550

Standard Configuration:

  • Conveyor Delivery: 1.5 meters (included)
  • Razor (Slitter) Knife Unit: 1 knife (included)
  • Optional Feature: Ionizer

Specifications:

  • Cutting Speed: Up to 80 cuts/min (based on 610mm cutting length)
  • Maximum Material Width: 550mm
  • Cutting Length Range: 1mm – 999.9mm
  • Cutting Length Input Unit: 0.1mm increments
  • Cutting Length Display: 7” Touch Screen + Button Control
  • Drive System:
    • Feeding: Stepping Motor
    • Cutting: Servo Motor
  • Power Supply: AC 220V, 50/60Hz, 2kW
  • Conveyor Length: 1.5 meters
  • Machine Dimensions: 2580mm (L) × 1200mm (W) × 1250mm (H)
  • Machine Weight: Approx. 300 kg
