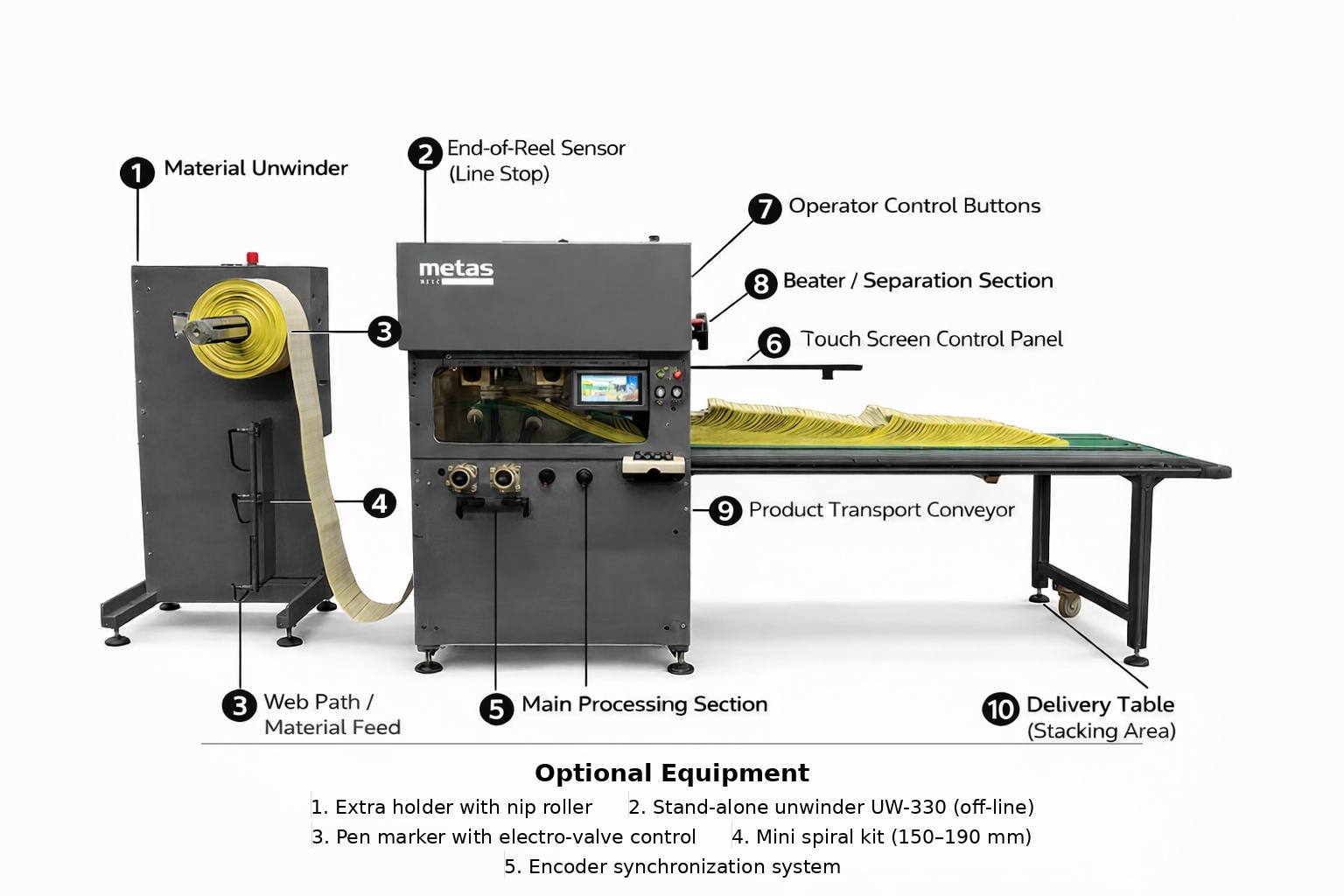

Electronic Spiral Fan Folder Model SP-508-E (Gearless)

High speed fan folder [115 m /min] electronic change size system. Solid structure and curated design for the high level machine able to fan fold labels, tic. and lottery tickets. Able to work on line through synchro kit with die—cutting unit or printing Machine or off line with unwinder model UW—330/400/508—SB. The folding register is always electronically controlled through label gap/print mark sensor reader. It can adjust the folding phase during production. The batch counter is done with an quick speed-up of the conveyor belt [for labels] or with pen marker [for paper] without stops. It is also available mini spiral kit able to process minimum folding size of mm 150 [5.90”].

Model SP-508-E (Gearless)Model SP-508-E (Gearless)
web width range 80mm 2.5"/508mm 20"
web width508mm 20"
paper weight 60/240 g/m
min fold size 190,50mm ( 7.5”) (option mm 150)
max fold size485mm( 19”)
folding size steps in mm 0,01 , 1/6” , 1/8”
speed154mm 500 fpm
dimension WxDxH without unwindercm 230x120x140
Machine weightkg. 600
power requirements400V + N + GND
Core Size for Unwind 76mm( 3”) option mm 150 ( 6”)
Power Requirements400V + N + GND
