The Smart Cut sheeter offers high precision with durable blades and a pneumatic cylinder. It supports single and double cuts, includes a vertical slitting unit for 2-up jobs, and features an electronic cut register. Configurable exit options include a fixed table or a 120 cm belt with a job separator.
Smart Cut

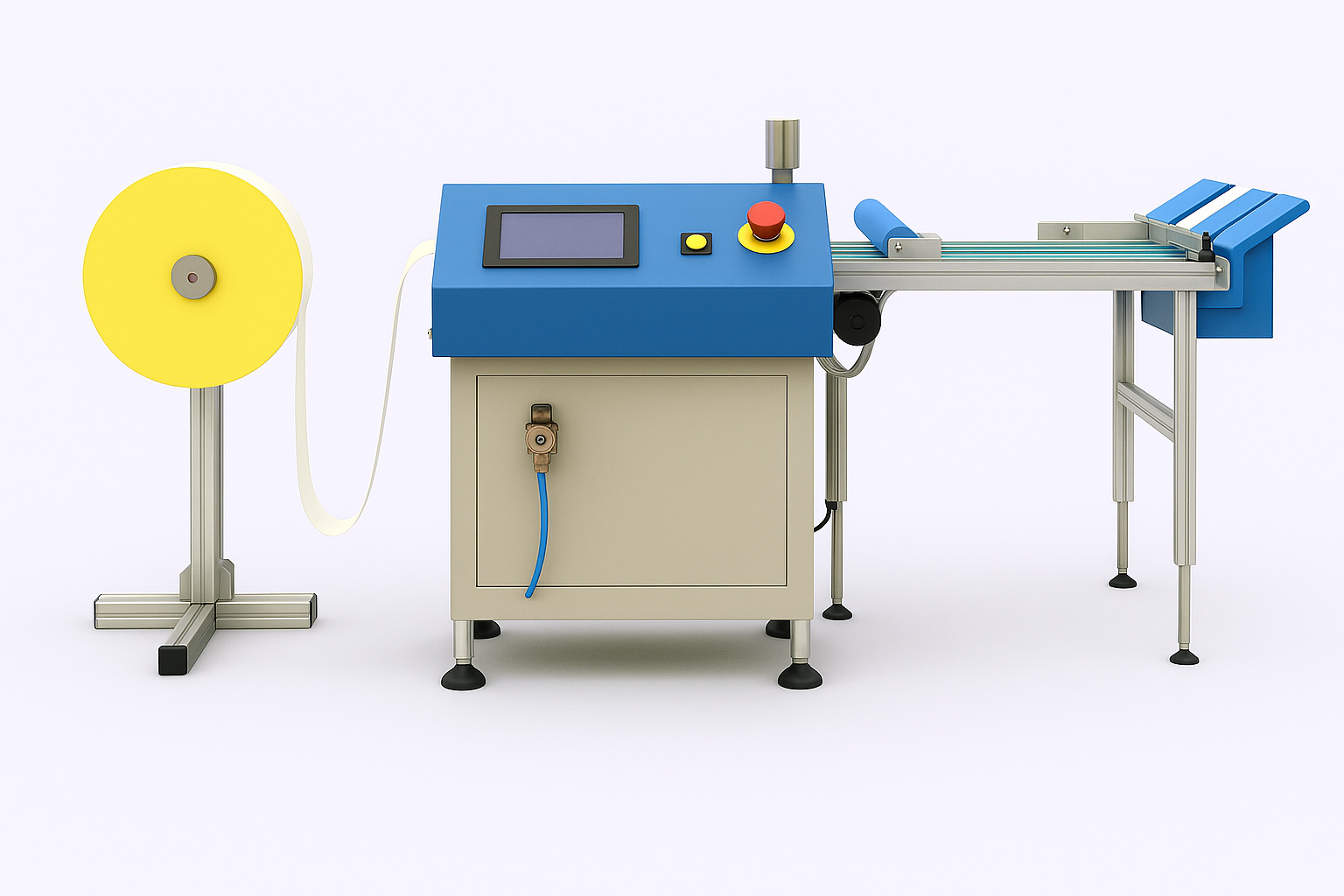

New Sheeter with Electronic Change Size System
This state-of-the-art sheeter is engineered for versatility and precision, making it an ideal choice for
various cutting applications. It features durable, long-life blades that ensure high cut accuracy
through a pneumatic cylinder. The sheeter supports both single and double cuts and includes a

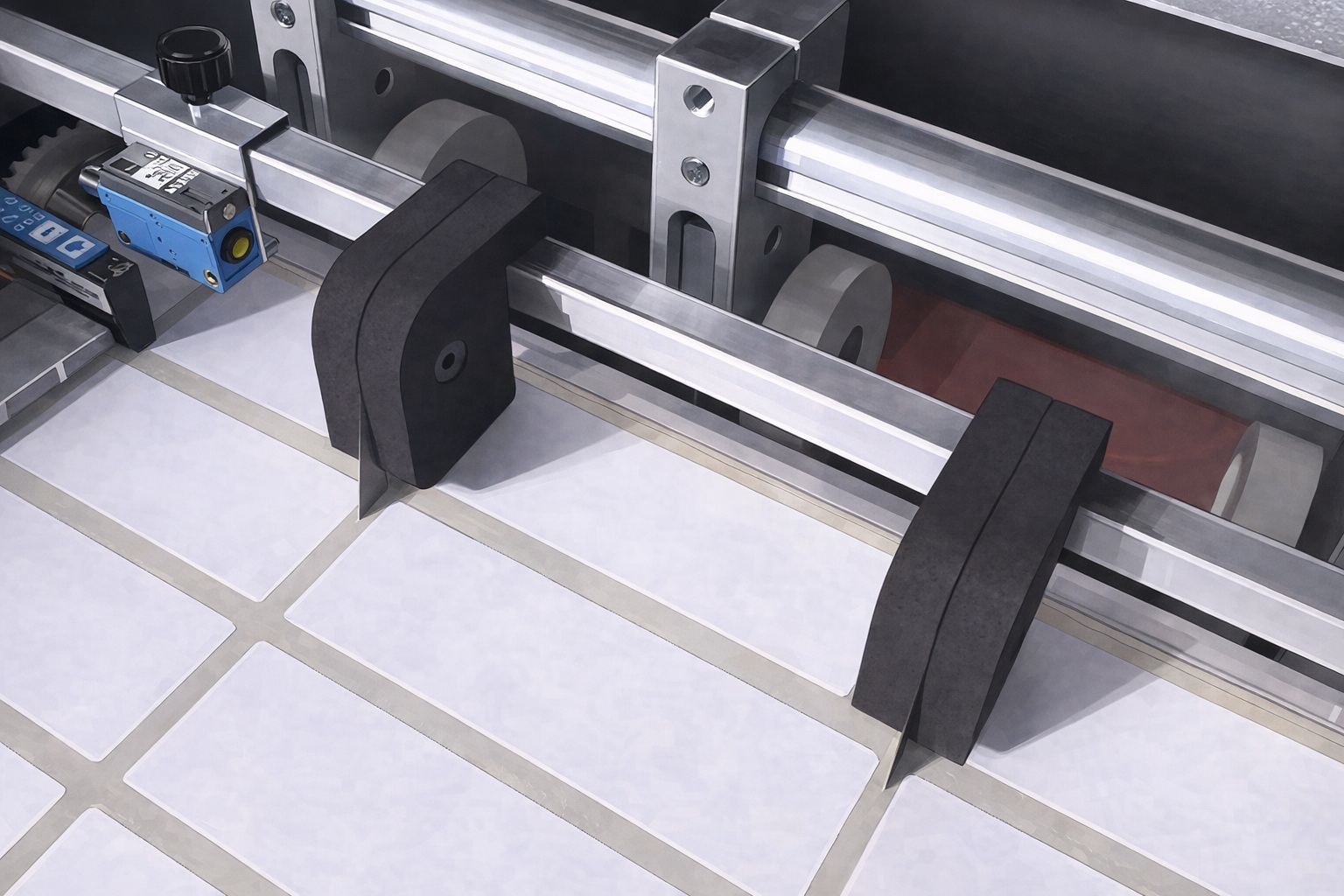

vertical slitting unit capable of producing 2-up jobs. The cut register is electronically controlled via a
label gap sensor or print mark sensor, eliminating the need for gears during size changes.
Additionally, the sheeter can operate online through an optional sensor. The exit type can be

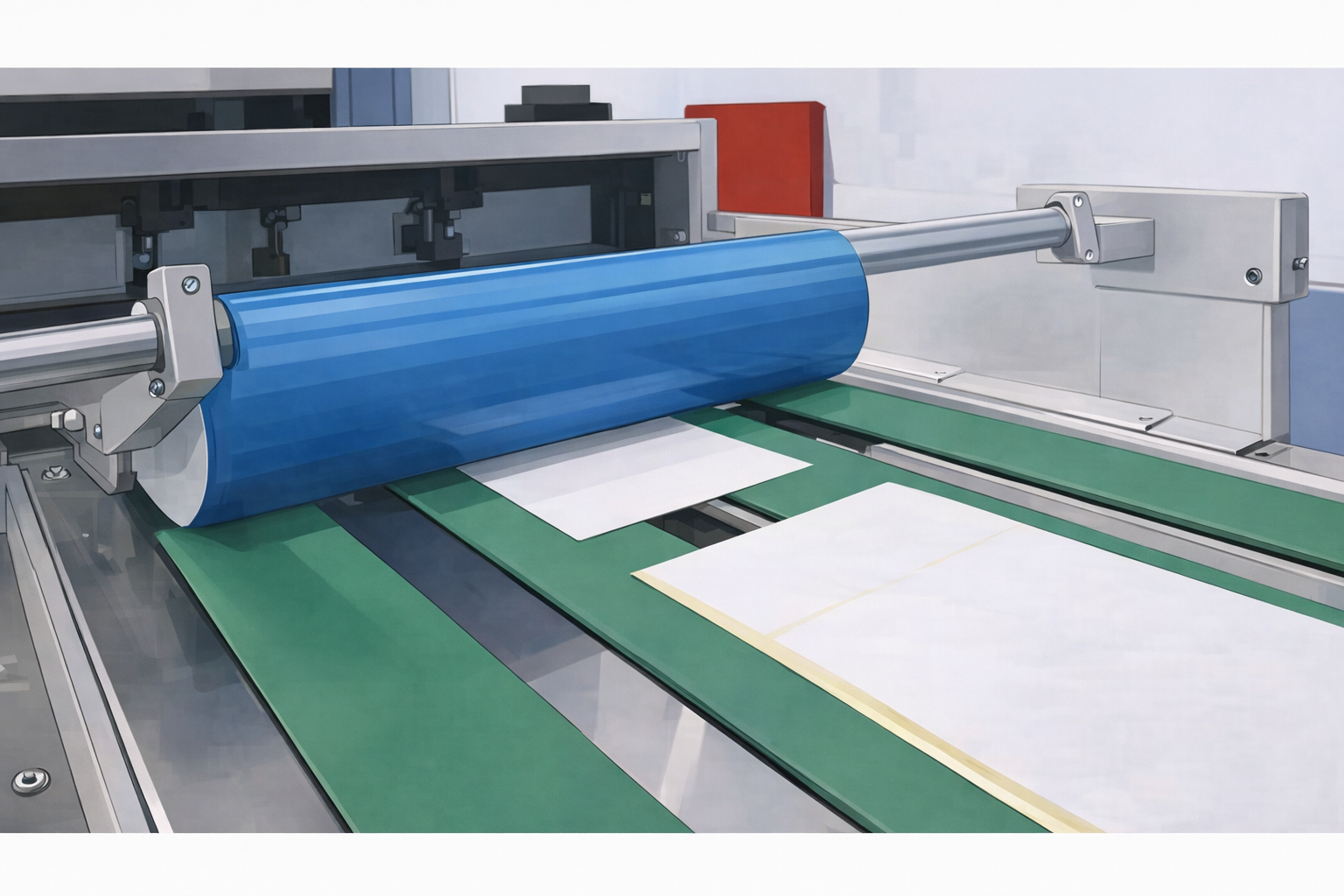

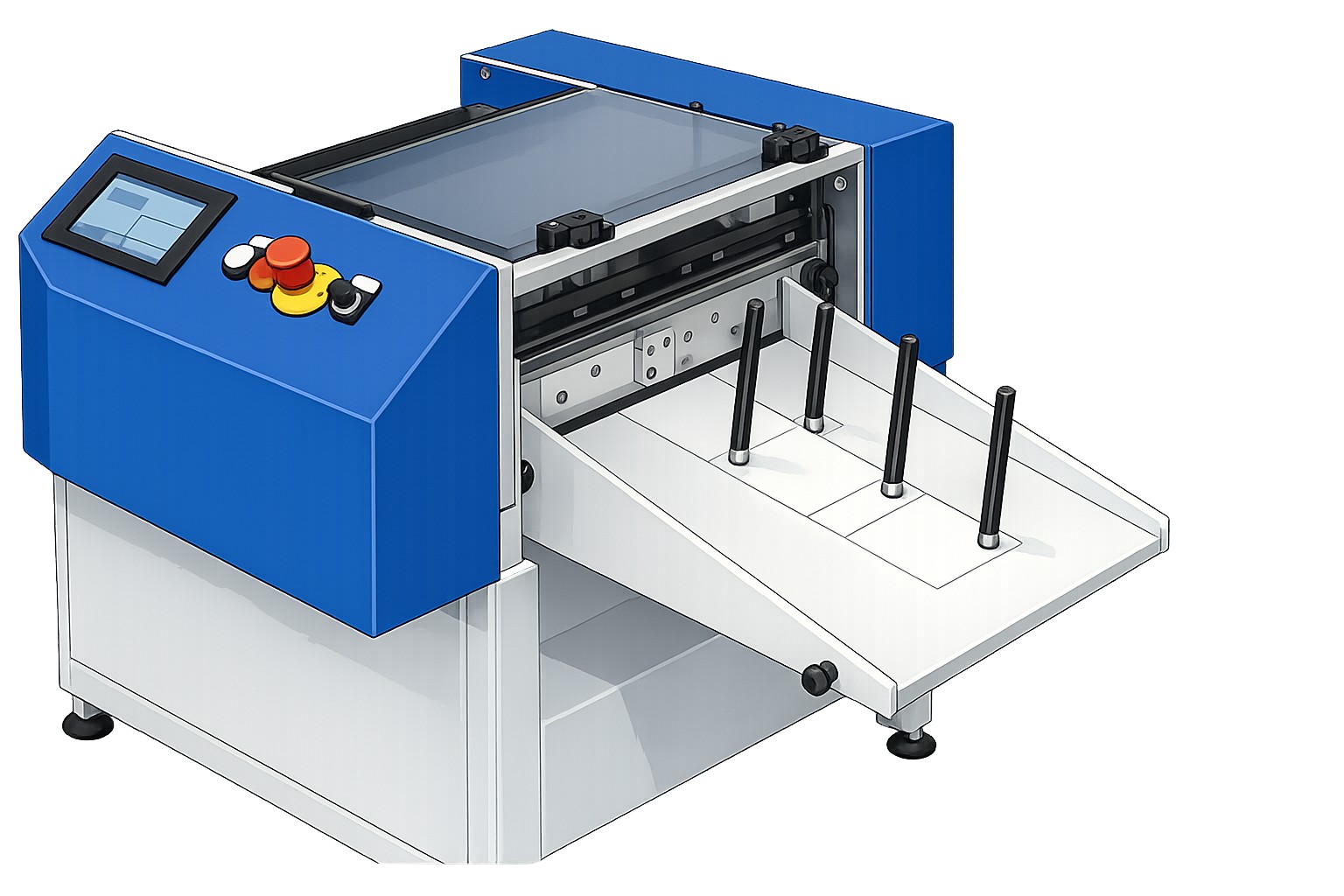

configured with either a fixed table or a belt delivery system with a length of 120 cm and job
separator.
Key Features:
• 7” LCD Touch Screen Control: Provides an intuitive interface for easy operation and
monitoring.
• Electronic Change Size System: Allows for precise adjustments with a sheet length precision
of 0.01 mm (1/784”).
• Adjustable Settings: Enables customization of the number of labels per sheet.
• Cutting Options: Offers both single cut and double cut capabilities.

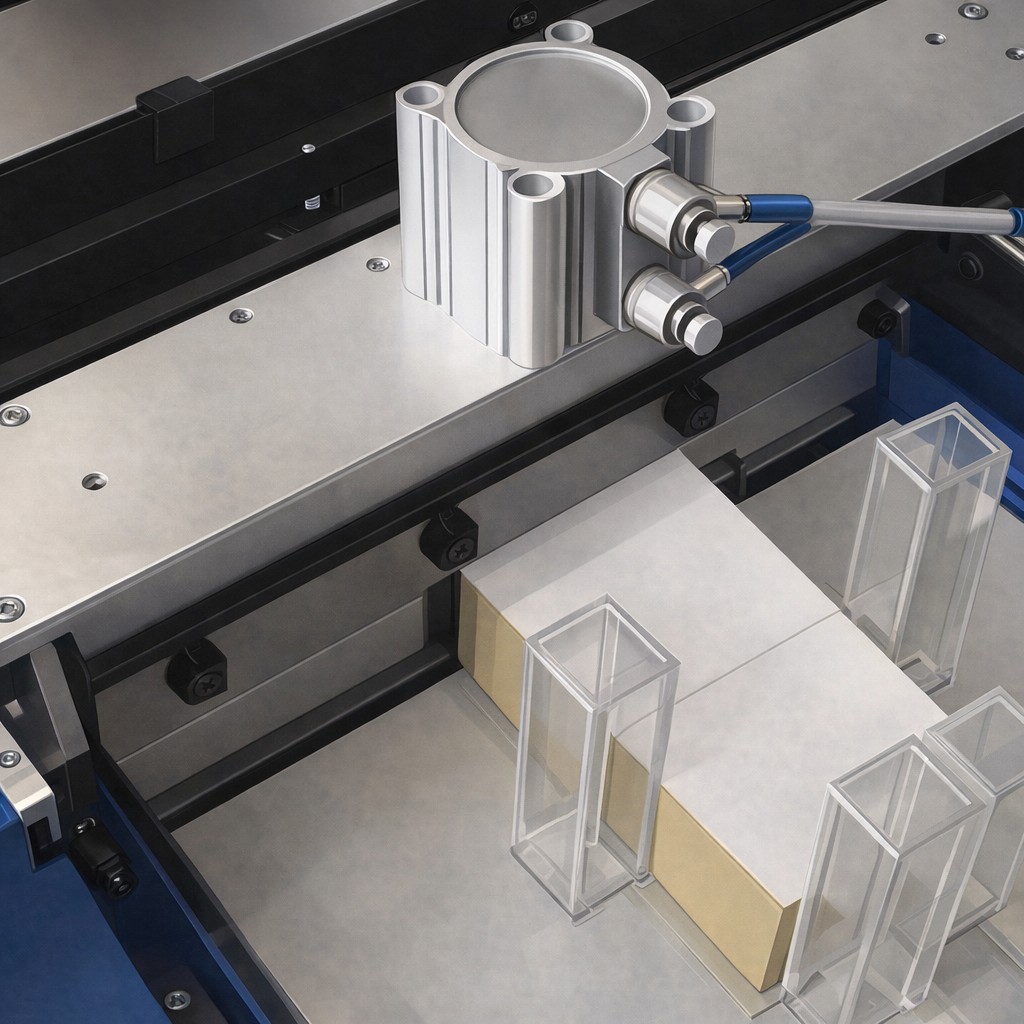

• Horizontal Cutting Unit: Driven by a pneumatic cylinder for consistent performance.

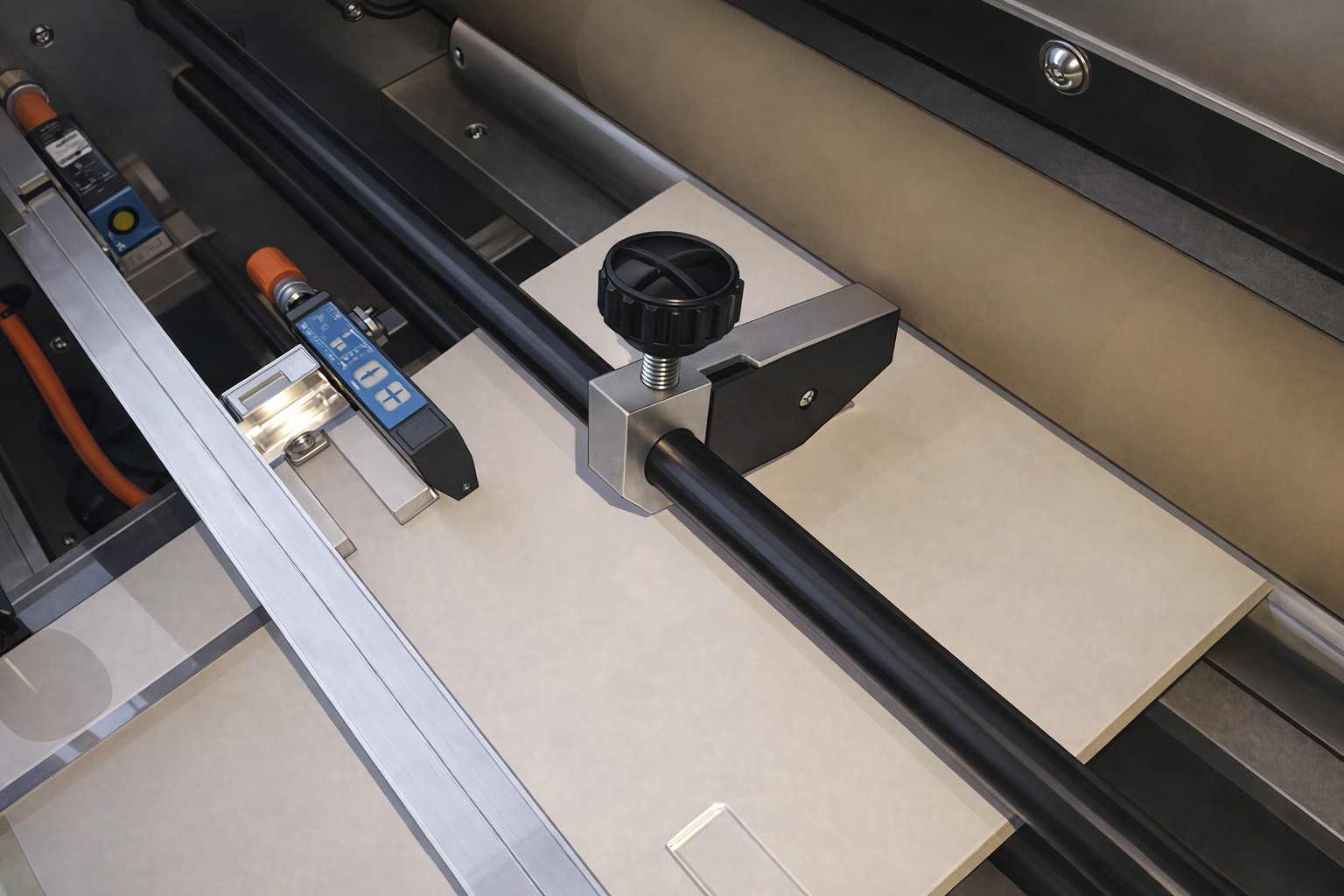

• Label Gap Reader Sensor: Included for die-cut labels, ensuring accurate detection and
cutting.
• Print Mark/Slot Sensor: Optional sensor for printed materials, enhancing versatility.
• Programmable Sheet/Lot Counters: Facilitates efficient job tracking and management.
• High Speed: Achieves a speed reference of 6,600 sheets per hour for A4 sheet size with
single cut.
• Compliance: Meets CE standards for safety and quality.
Advantages:
• Electronic Change Size System: Simplifies size adjustments and enhances operational
efficiency.
• High Cut Accuracy: Ensures precise cutting for high-quality output.
• Job Storage: Capable of storing up to 100 jobs for quick recall and setup.
• Simple and Fast Setup: Reduces downtime and increases productivity.Technical Specifications:
• Web Width Range: 65-330 mm (2.5”-13”)
• Sheet Length Range: 10-2540 mm (1/2”-100”)
• Length Steps: 0.01 mm (1/784”)
• Double Cut Range: 0.1-50 mm (1/196”-2”)
• Single Cut Speed: 6,600 sheets per hour
• Cutting Accuracy: ±0.15 mm (1/196”)

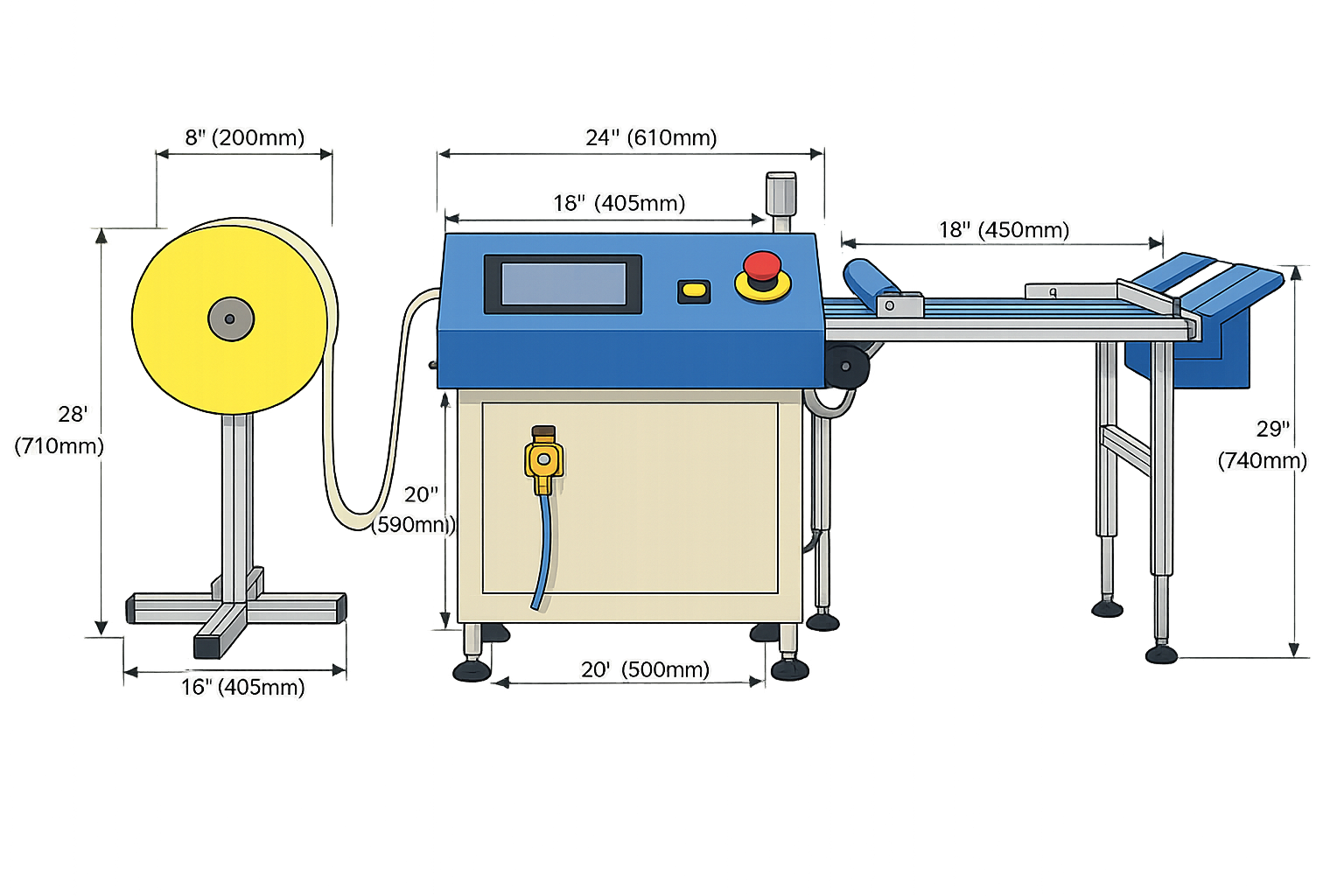

• Dimensions (WxDxH) Without Unwinder:
• With Table: 110x90x110 cm (3.6x3x3.5 ft)
• With Belt Delivery: 200x90x110 cm (6.5x3x3.5 ft)
• Power Requirements: 230Vac single or 3 phase – 50/60Hz
• Electrical Power Consumption: 1 kW
• Pneumatic Power: 0.5 MPa
Unwinder Basic (Optional):
• Max Roll Size: 600 mm (24”)
• Web Width: 65-330 mm (2.5”-13”)
• Roll Axle: 76 mm (3”), optional 150 mm (6”)
• Max Roll Weight: 60 kg (132 lb)
• Speed: 50 m/min (165 ft/min)
• Dimensions (WxDxH): 60x74x109 cm (2×2.5×3.6 ft)
• Weight Without Roll: 30 kg (66 lb)
This sheeter is designed to meet the demands of modern production environments, offering
high precision, flexibility, and ease of use.
