Cutter-d Programmable Semi-Automatic Core Cutter

$0.00

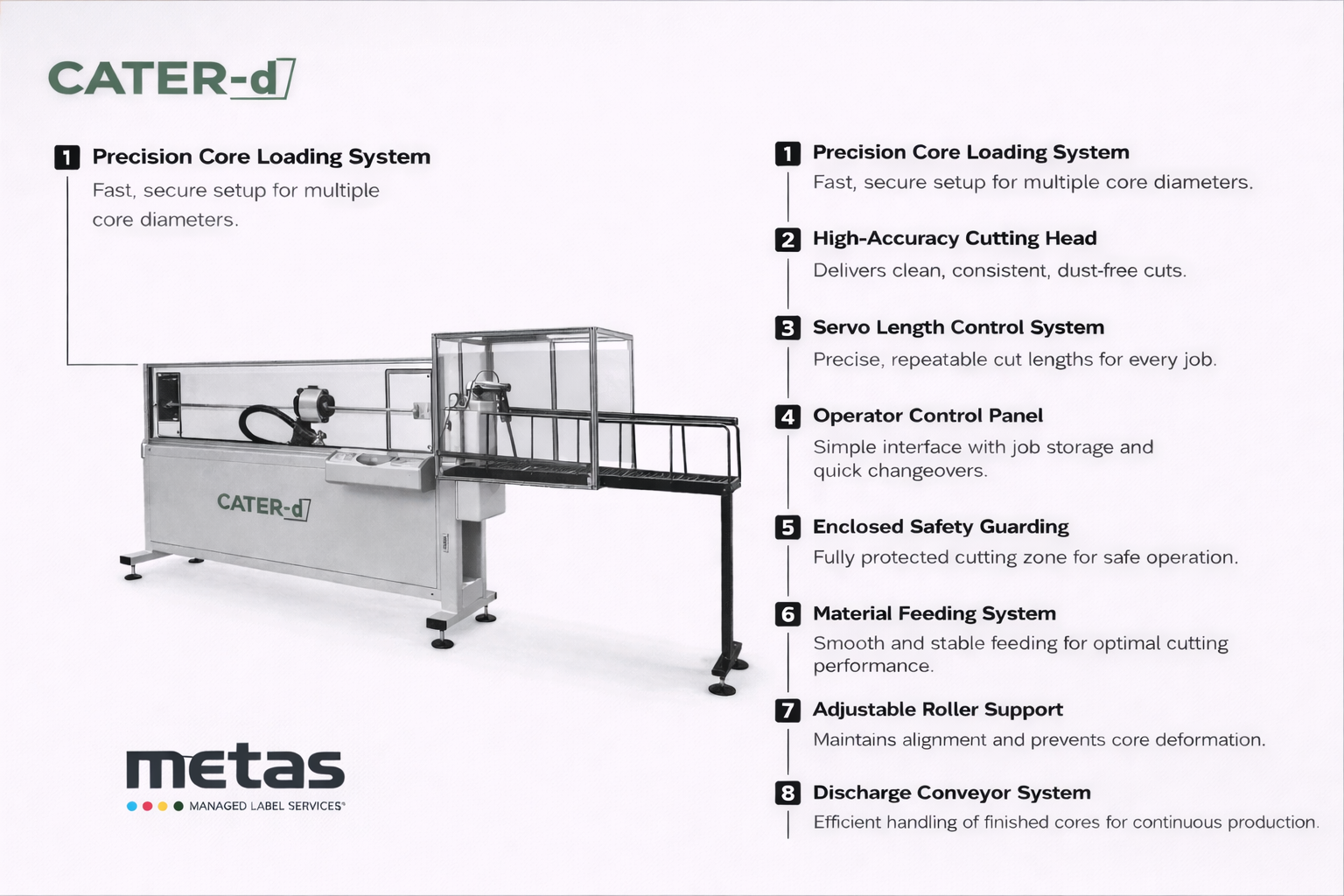

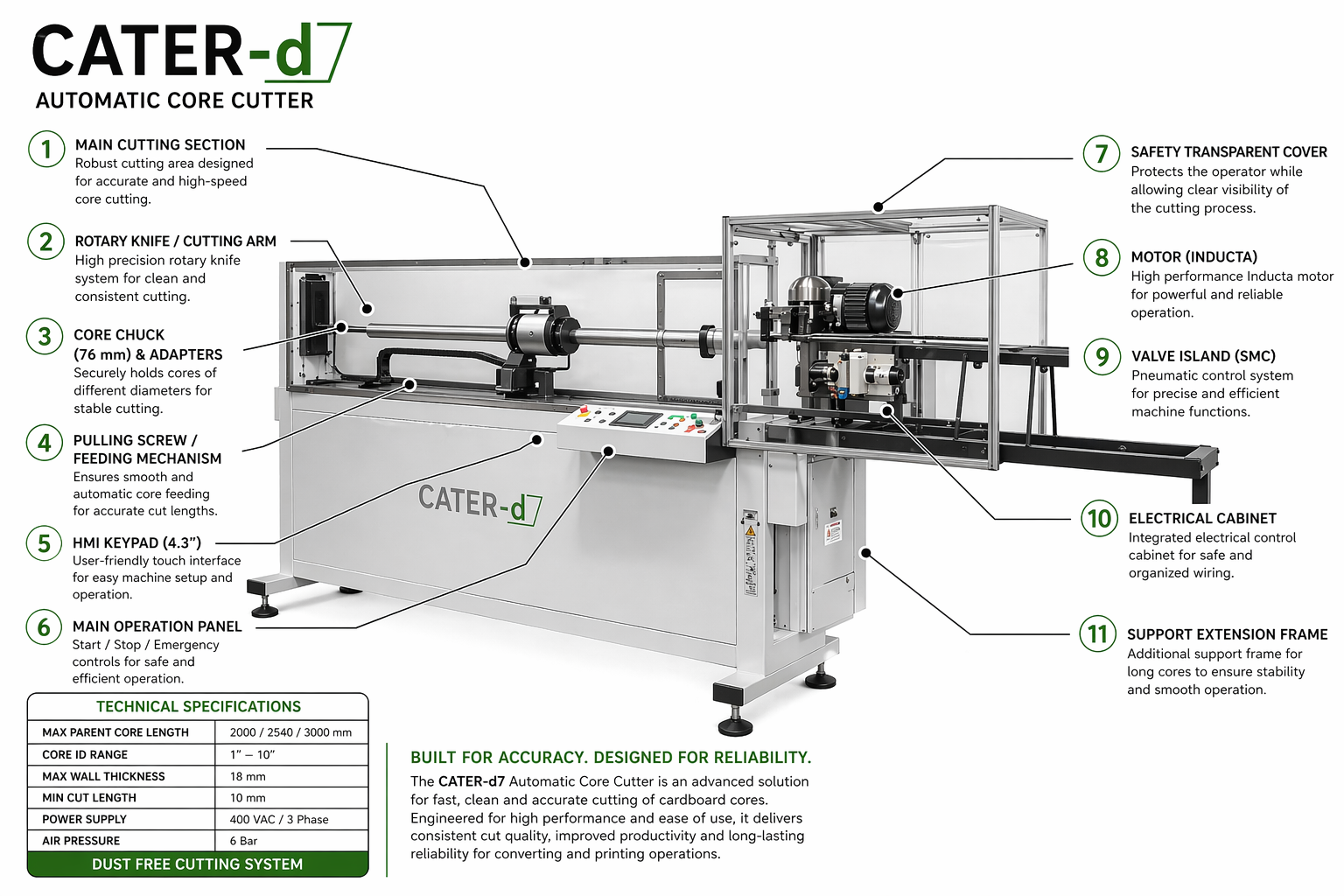

Cutter-d Programmable Semi-Automatic Core Cutter

The Cutter-d is an automatic core cutter. An easy to use touch screen panel allows quick input of required quantities and lengths of cores to be cut. The “Start” button activates the intelligent slitting software. Operator intervention is not required during cutting. The core cutter has been designed for quick setup of different core IDs. The Cutter-d is our answer to the increasing requirements of our customers for a quick and dust free cut of cardboard cores.

Max. Parent Core Length2,000 mm (78.7 in) / 2,500 mm (98.4 in) / 3,000 mm (137.8 in) as option
Core Inside Diameter3 in (76.2 mm) / option 40 mm (1.6 in) to 152.4 mm (6 in)
Max. Wall ThicknessUp to 15 mm (0.59 in) depending on core ID
Min. Cut WidthVariable depending on wall thickness
Air Pressure6 bar
Electric Supply400 VAC x 3 phase
Dimensions (L x W x H)L: 2,300 mm (90.5 in) x W: 640 mm (25.2 in) x H: 1,560 mm (61.4 in)
Weight310 kg (683.4 lbs)
Download Specs
  • Magazine feeder enables cutting core in an automatic cycle
  • Thimbles are cut in dust-free technology
  • Fully automatic
  • Fully servo driven
  • Touch screen
  • Adaptors for different cores size
  • Ethernet connector to fast diagnostic
  • Up to 15mm depending on diameter
  • Optional length 2000 mm, 2500 mm, 3000 mm, and 3500 mm
  • Waste separator basket for measured and waste cut cores
  • Core sizes 1-8”
  • Low cost replaceable cutting base
×
