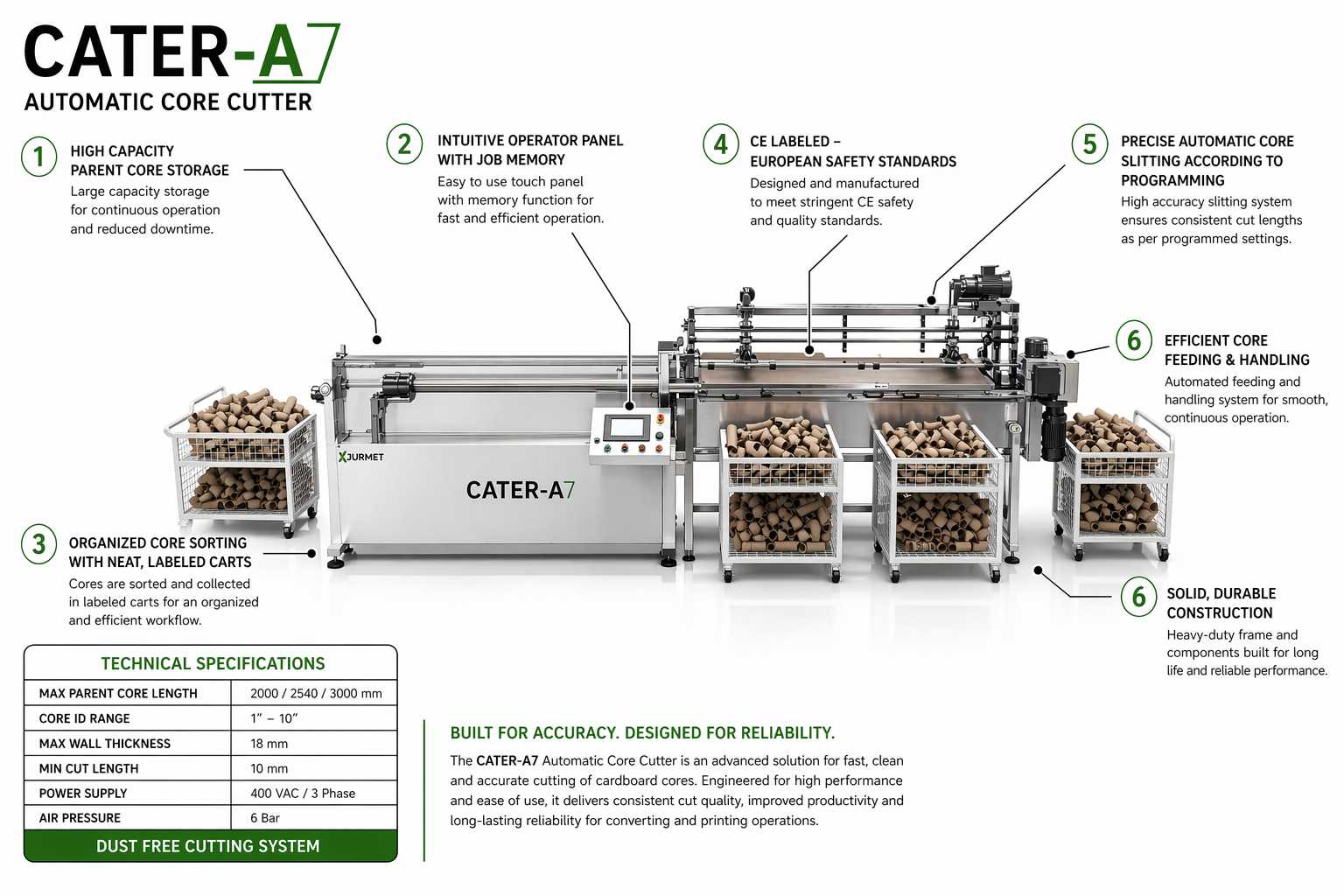

The CATER-A automatic core cutter, with an optional loading device, automates the slitting process. Operators load cores and program slits and widths on the control panel. The machine uses dust-free technology and can be customized to include a loading device.

CATER-A Main Parameters:

  • Maximum Parent Core Length: 2000/3500mm (78.7″ / 137.8″)
  • Range of Core Inside Diameter: 1″ – 8″
  • Maximum Wall Thickness: 18mm (0.7″)
  • Minimum Slit Length: 10mm (0.4″)

Company Information:

Jurmet Sp. z o.o. Sp. K.

  • Address: ul. Antoniewo 8, Poland, 87-162 Lubicz
  • Telephone: +48566782777-78
  • Email: jurmet@jurmet.com
  • Website: www.jurmet.com

Product Overview:

CATER-A is an advanced core cutter designed for the automatic cutting of cardboard cores. This model is engineered to minimize core slit time, particularly when the automatic loading system is utilized. The process is streamlined as follows:

  1. Operator Input: The operator enters the required lengths and quantities of cores to be slit into the control panel.
  2. Loading: Parent cores are loaded onto the stock.
  3. Automatic Operation: Upon pressing the start button, the machine automatically loads and slits the cores into the specified sections.

Compliance:

The core cutter is manufactured following European safety standards and is CE-labeled, ensuring high safety and quality standards.

Main Features:

  • Automatic Settings: Facilitates ease of use and efficiency.
  • Job Memory: Allows for the storage and recall of previous job settings.
  • High Productivity: Designed to handle large volumes efficiently.
  • Large Core Stock Capacity: Accommodates a significant number of cores.
  • Solid Design: Ensures durability and reliability.
  • Three Cutting Speed Modes: Offers flexibility for different cutting requirements.

Core Cutter Power Supply220 3 Phase Motor
Core Cutter Air6 Bar
Core Sizes ModelCATER-A
Core Cutter Cutting ThicknessMax. wall thickness: 15mm
Core Cutter Adaptor for different Sizes1" ID anvil 1,5" ID anvil 2" ID anvil 3" ID anvil 4" ID anvil 5" ID anvil 6" ID anvil 8" ID anvil
Internal diameter rangeInner Diameter Range: 70mm 1 "-8 "
Min.cutting lengthMin.cutting length 10mm
Max. input thimble length2000/2500/3000 / 3500mm
PROGRAMMABLEPROGRAMMABLE CORE CUTTER
