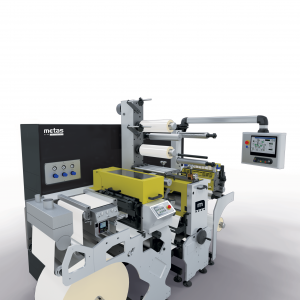

CL380mm Rotary Die Cutting

This machine is prepared for the finishing of digitally printed labels as well as to produce a wide range of labels. It is equipped with a rotary flexo unit with an independent control panel for printing and varnishing (UV drying system from UV Ray). Thanks to the lamination unit it is possible to do all kinds of lamination and cold foil (registration control from Mitsubishi Electric). Rotary die cutting unit equipped with servo register systems from Mitsubishi Electric enables die cutting in the registration of preprinted labels with marks. The machine is also equipped with a shear-cutting unit for slitting and a single-shaft servo-driven rewinder.

Width of converted material
Max. Substrate Thickness self-adhesive labels:
Rewound roll diameter up to 500 mm diameter

max. web’s width: 380 mm
• material type: paper, foil (PP, PVC, PET), self-adhesives
• material thickness: 50 μm – 200 μm
• max. mechanical speed: 160 m/min
• max. printing speed: 120 m/min
• max. die cutting speed (semi-rotary): 100 m/min
• power supply voltage/frequency: 3 x 400V / 50 Hz
• installed power: ~18 kW
• max. unwinding roll’s diameter: 650 mm
• max. rewinding roll’s diameter: 650 mm
• max. roll’s weight: 140 kg
• corona treater
• electronic web guide system from BST International
• fully equipped rotary flexo unit with servo register system and UV LED dryer
• lamination unit for all types of laminations and cold foil
• semi-rotary die-cutting unit
• matrix rewinder for rolls up to 500 mm diameter
• pneumatically clamped slitting unit
