Butt to Butt Unwinder
Installed at the infeed of any type of printing press, the CARGO unwinder enables non-stop operation through butt-to-butt splicing and an integrated horizontal accumulator. Designed for speed, simplicity, and operator accessibility, CARGO minimizes downtime and reduces material waste.

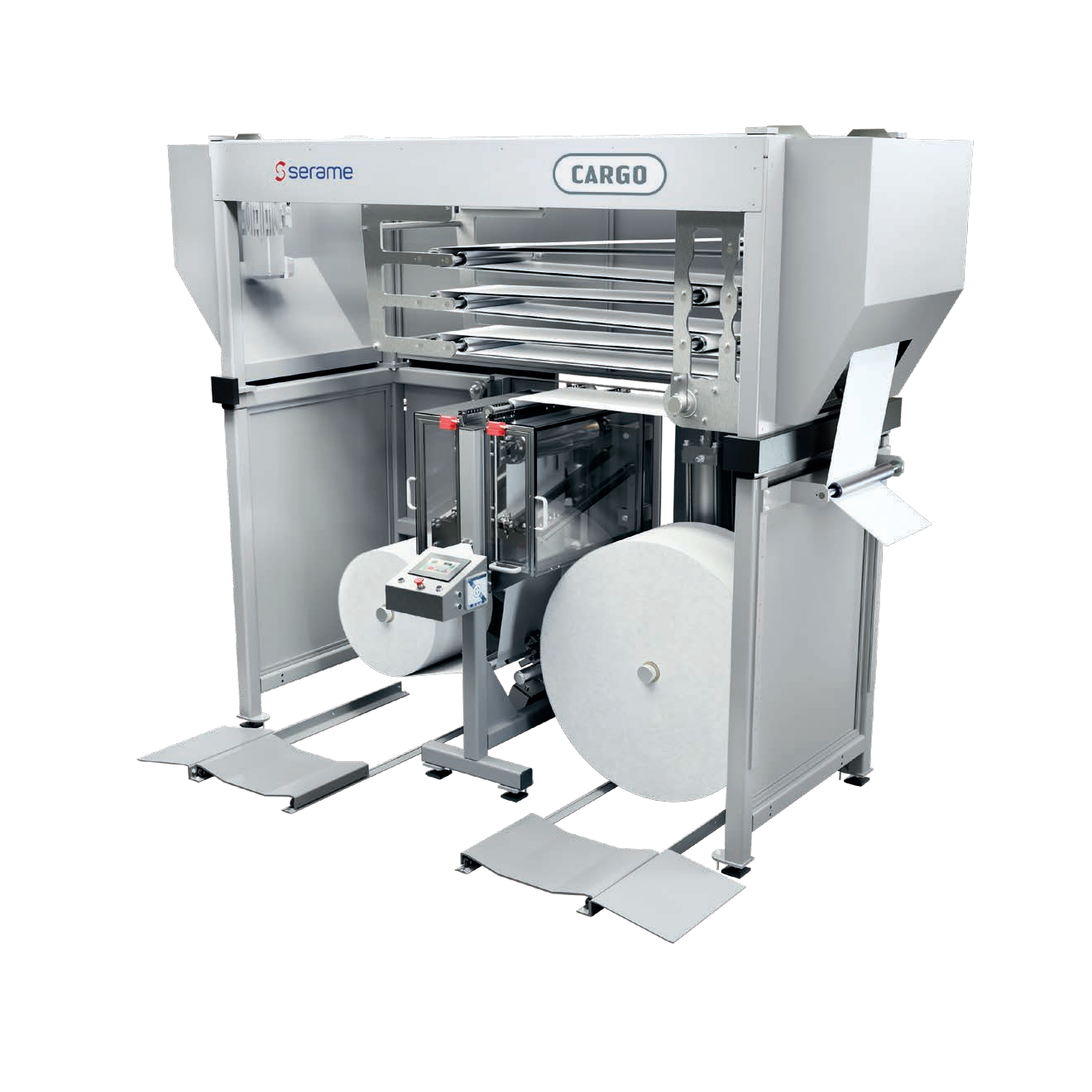

CARGO Butt-to-Butt Unwinder
Continuous Unwinding for Seamless Printing
Installed at the infeed of any type of printing press, the CARGO unwinder enables non-stop operation through butt-to-butt splicing and an integrated horizontal accumulator. Designed for speed, simplicity, and operator accessibility, CARGO minimizes downtime and reduces material waste.
At the end of a production run, CARGO allows you to fully empty the accumulator, helping limit paper loss. With a wide range of customizable options, it can be adapted to fit virtually any press configuration.
Key Features
- Splice Type: Butt-to-butt (no overlap)
- Accumulator: Horizontal design with 25 m capacity
- Master Roll Web Guide (Pre & Post Accumulator)
- End-of-Roll Detection Cell
- Master Roll Loading: Fixed or with integrated lift
- Core Diameter Compatibility: 19 mm to 76 mm
- Maximum Web Width:
- 16″ / 420 mm
- 20″ / 520 mm
- Maximum Roll Diameter: 1100 mm
- Maximum Speed: 150 m/min
- Webbing: Fast, simple, and operator-friendly
- Adaptability: Compatible with all types of printing presses
