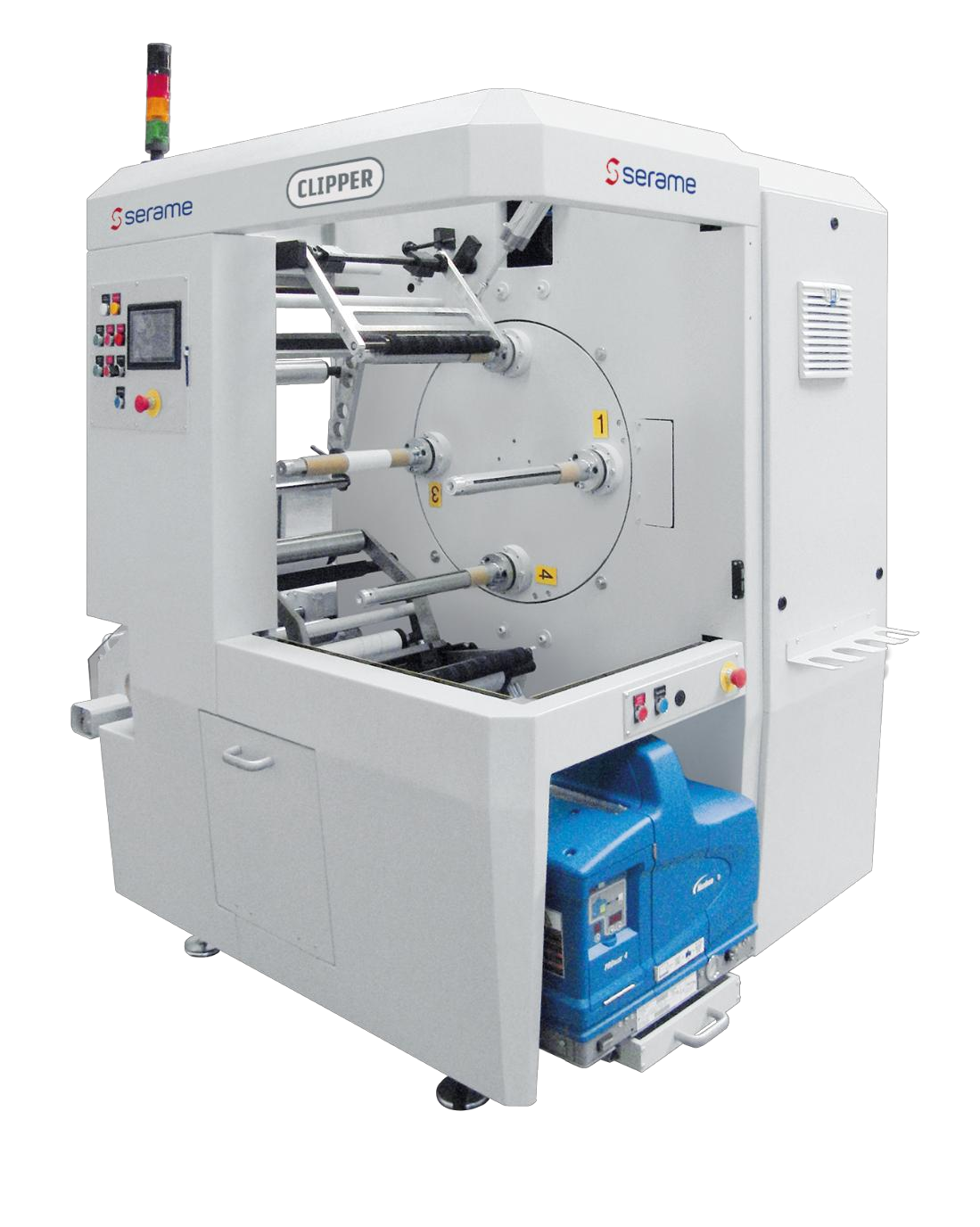

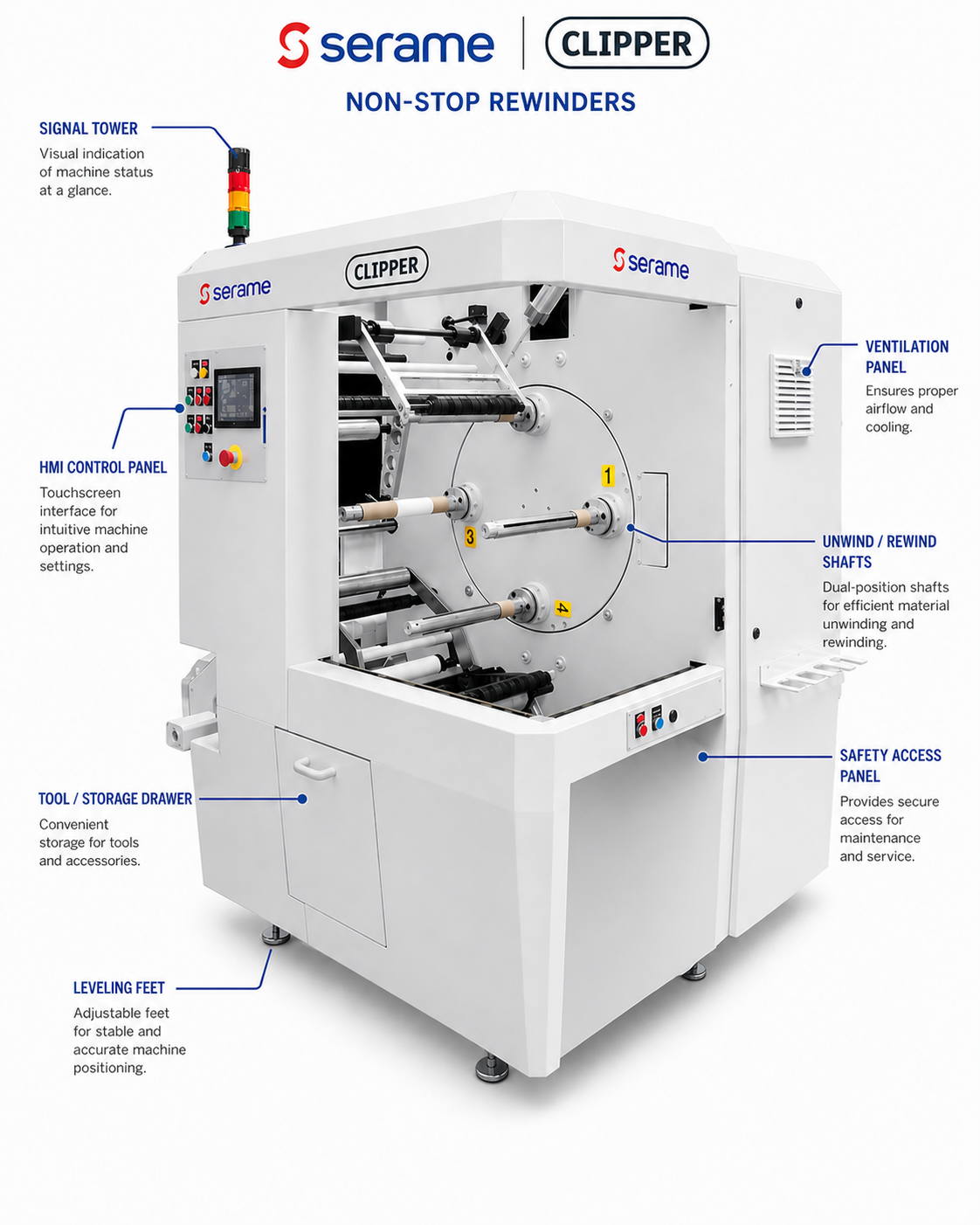

CLIPPER 4B – 4 Spindle Turret Rewinder

Efficient In-Line Slitting & Rewinding for High-Volume Small Reels

The CLIPPER 4B is a high-performance turret rewinder designed for seamless integration with your printing press or for use in an offline configuration. Equipped with four winding spindles, the CLIPPER 4B enables continuous operation by significantly reducing cycle times, making it ideal for producing small-diameter reels at production speeds without finishing bottlenecks.



CLIPPER 4B – 4 Spindle Turret Rewinder

Efficient In-Line Slitting & Rewinding for High-Volume Small Reels

The CLIPPER 4B is a high-performance turret rewinder designed for seamless integration with your printing press or for use in an offline configuration. Equipped with four winding spindles, the CLIPPER 4B enables continuous operation by significantly reducing cycle times, making it ideal for producing small-diameter reels at production speeds without finishing bottlenecks.

Key Features

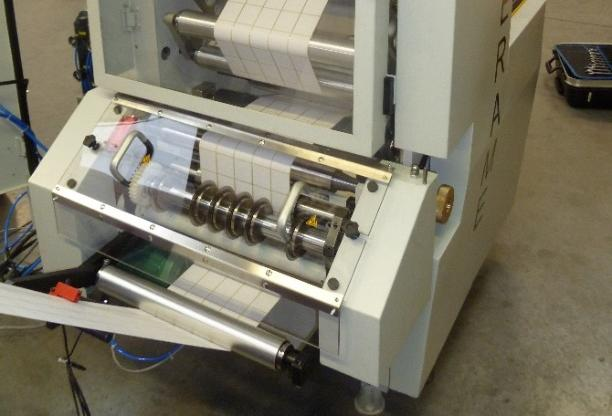

  • Slitting Options: Razor, crush, and scissor systems
    (Optional: automatic positioning of knives and counter-knives)
  • Winding Modes: Internal and external winding as standard

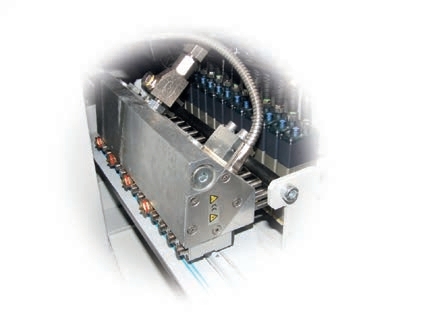

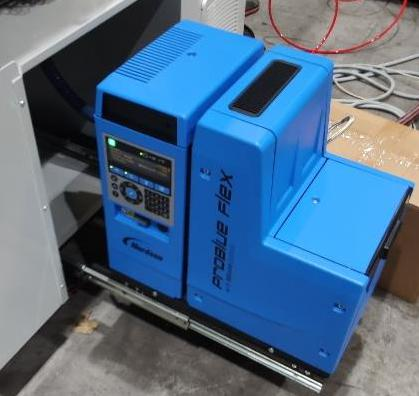

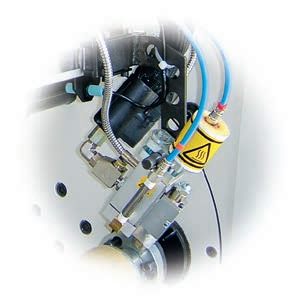

  • Gluing System: Fully automatic

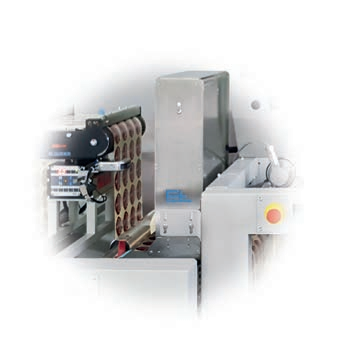

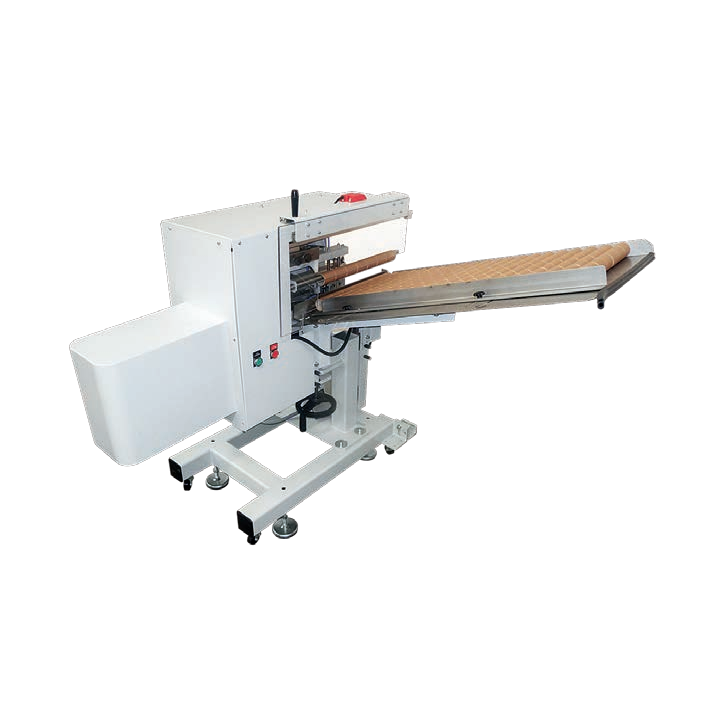

  • Core Loading: Manual or automatic
  • Roll Closure: Manual, glue, or automatic with label

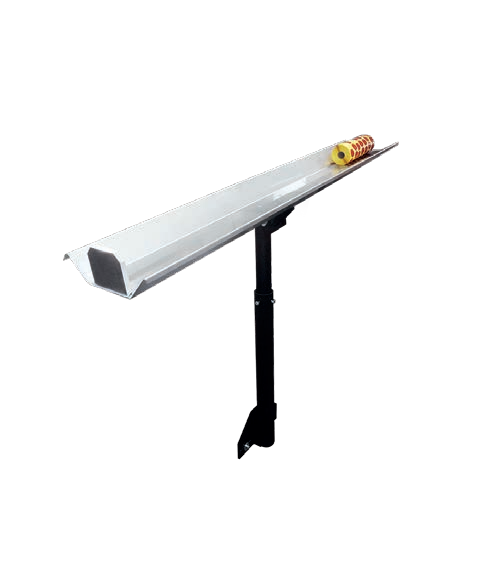

  • Roll Ejection: Manual or on conveyor
  • Counting Options: Labels, meters, or roll diameter
  • Adaptability:
    • In-line with any printing press
    • Off-line with standard unwinder

Performance Specifications

Parameter Value
Maximum Web Width 10″ / 250 mm, 13″ / 330 mm, 16″ / 420 mm, 20″ / 520 mm
Maximum Roll Diameter 300 mm
Core Diameter Range 19 mm to 152 mm
Maximum Speed 150 m/min
Automatic Cutting At production speed
Complete Production Cycle Less than 20 seconds
