2X2 SPINDLE TURRET REWINDER

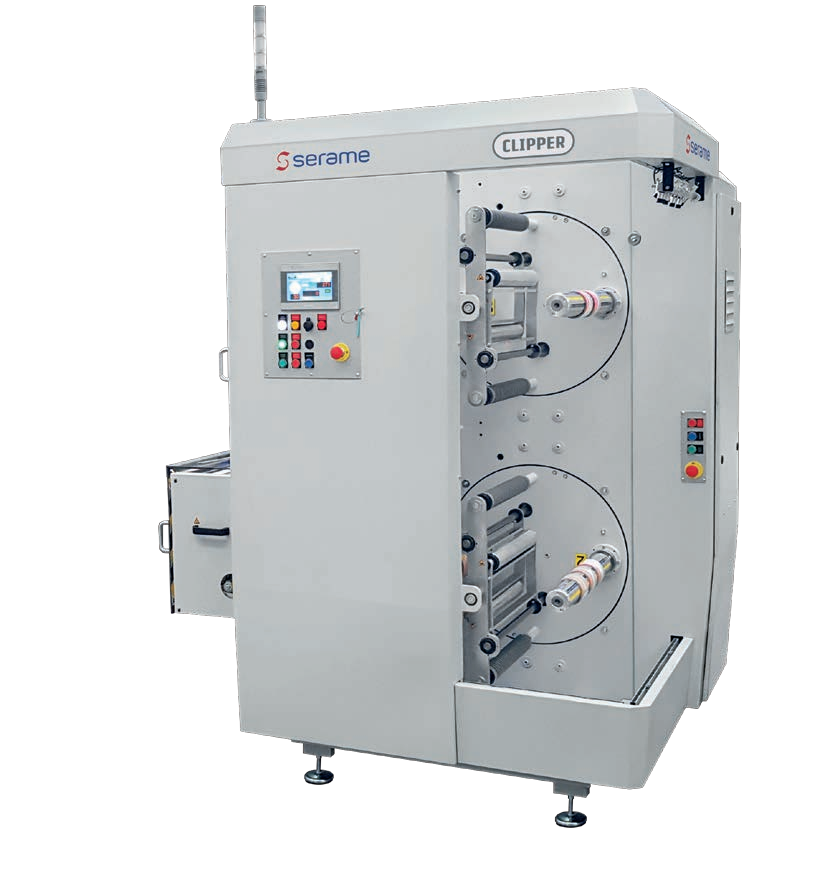

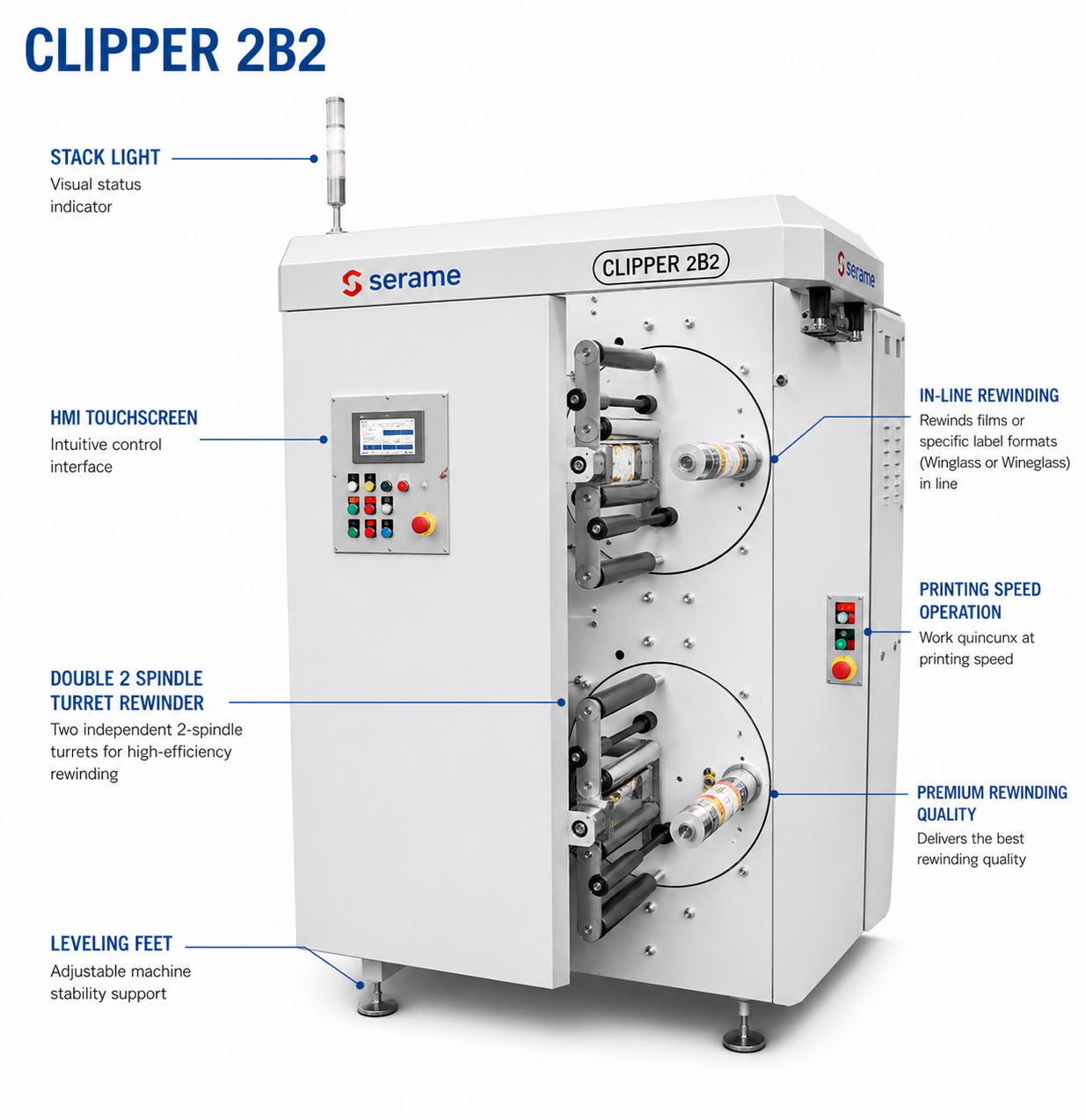

CLIPPER 2B2 – 2×2 Spindle Turret Rewinder

Slitting & Rewinding – Designed for Specific Labels and Films, In-Line Production

The CLIPPER 2B2 is a high-efficiency, double 2-spindle turret rewinder engineered to handle films and specialized label formats such as Winglass (Wineglass). It allows in-line rewinding at full production speed while maintaining superior winding quality. Thanks to its quincunx (offset) winding capability, the system maximizes throughput and reduces downtime.



CLIPPER 2B2 – 2×2 Spindle Turret Rewinder

Slitting & Rewinding – Designed for Specific Labels and Films, In-Line Production

The CLIPPER 2B2 is a high-efficiency, double 2-spindle turret rewinder engineered to handle films and specialized label formats such as Winglass (Wineglass). It allows in-line rewinding at full production speed while maintaining superior winding quality. Thanks to its quincunx (offset) winding capability, the system maximizes throughput and reduces downtime.


Key Features

  • Internal and external winding (standard)
  • Label, meter, and diameter counting
  • Razor slitting system
  • Manual or automatic gluing system
  • Manual core loading
  • Manual roll closure
  • Manual or swing-arm roll ejection
  • Flexible configuration:
    – Runs in-line with all printing presses
    – Can operate off-line with a standard unwinder

Technical Specifications

Specification Details
Maximum web width 250 mm (10”) / 330 mm (13”) / 420 mm (16”) / 520 mm (20”)
Maximum roll diameter 400 mm
Core diameter 19 to 76 mm
Maximum speed 150 m/min
Automatic cutting At full production speed
